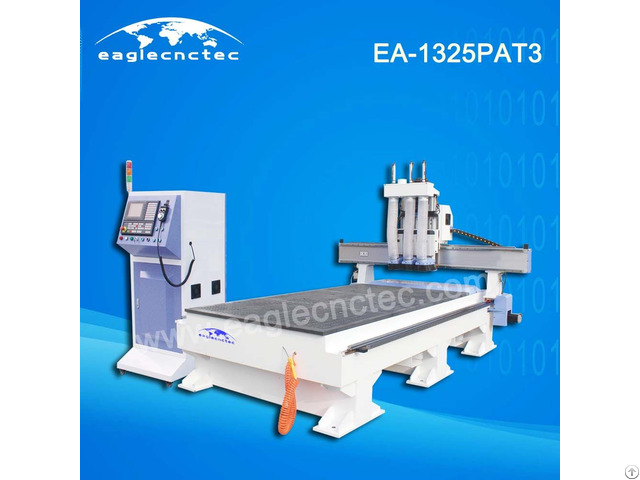

Cheap Pneumatic Atc Auto Tool Changer Cnc Router For Sale - China
price: contact company for price
Materials good for pneumatic ATC CNC routing machine
Solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials
Application
Panel Furniture Making includes Cabinet, Wood door, Wardrobe and etc.
Features of cheap ATC cnc router 1) High performance-to-price ratio, same function as cnc router with linear or carousel ATC but low cost.
2) Tool magazine can be range from 2PCS to 4PCS.
3) Heavy duty construction frame is welded with seamless steel structure, processed by vibrating stress relief (VSR) to reduce residual stress, and it is supported by 6 legs with adjustable leveling feet.
4) Beam is made of steel.
A steel beam is superior to a aluminum in it’s ability to
suppress and absorb the forces created during cutting.
It is internally ribbed in order to stiffen the assembly; this design is minimizing the vibration while increasing accuracy and repeatability.
5) Software: Type 3/Artcam/UcanCAM etc.
6) Has the function of re-carving after break point and power failure.
Technical Parameter Working Size (X Y Z) 1300×2500×200 mm
Driving Motor Servo Controller NC Studio
Repositioning ±0.02mm
Resolution ±0.0025mm
Command G-code
Max.
Traveling Speed 45, 000 m/min
Max.
Working Speed 20, 000 m/min
Body Construction Heavy duty type Work-Holding By vac-sorb Vacuum Pump 5.5KW, water-ring, 230CBM/hour flow rate X Y Transmission Helical rack and pinion, HIWIN square linear guide way Z Transmission Taiwan TBI rolling ballscrew, HIWIN square linear guide way
Spindle 6.0kw, air cooling, 0-18000 rpm variable speed Collet Size ER32, available diameter of cutter φ3.175-φ20mm
Tool Magazine Pneumatic tool changer, 3 tools Working Power AC 380V/50-60Hz, 3 Ph 4 Wire
Max.
Power Consumption 26KW
Small Electronics Schneider, Omron, CHINT Net Weight 2300 KGS
Packing Plywood case suitable for sea shipment
Company Contact:
- Posted By: Jinan EagleTec CNC Machinery Co.,Ltd.
- Phone: 86-155-54190802
- Address: GongYeBei Road, Licheng Dist., Jinan , Shandong , China
- Email:
- Website: https://www.eagletec-cnc.com
Published date: May 12, 2017
