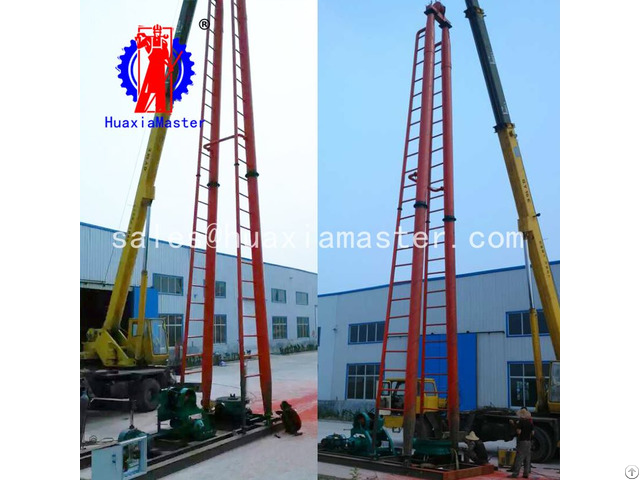

Spj 400 Water Well Drilling Rig - China

1 - The features of SPJ-400 water well drilling rig

·SPJ-400 water well drilling rig is powered by diesel engine, and can also be driven by motor in electric power area.

·The drilling rig is a bulk rotary table drill, which is mainly used for middle Quaternary, fine grained strata and soft rock layers.

The main usageis: the hydrogeological conditions at the bottom of the exploration and survey; the drilling and drilling for the agricultural irrigation, the industrial water use, the underground tunnel ventilation, the bridge and other engineering drilling.

·When drilling rig works, mud flushing fluid (positive circulation) and rotary table are used to drive the drilling tools to rotate.

Use winch system to realized ecompression drilling, lifting drilling, down pipe, impact sampling, vertical drilling tower.

2 - The specifications of SPJ-400 water well drilling rig

Borehole diameter 500mm-1800mm

Drilling depth 400m

Maximum output torque 18kn.

m

Active drill rod 108*108*12mm

Drilling pipe 89mm

Main indlasslifting power 30kn

Assistant windlasslifting power 20kn

Rotary table latus rectum 500mm

Rotating speed (forward and inversion) 40/70/128r/min

height of the drilling tower 13m

Gross weight (excluding drill pipe) 9t

External dimension 2200*6000*13000mm

Drilling tower type A / hydraulic drilling tower

This product is widely used inwater conservancy project, pile foundation engineering, bridge construction and so on.
