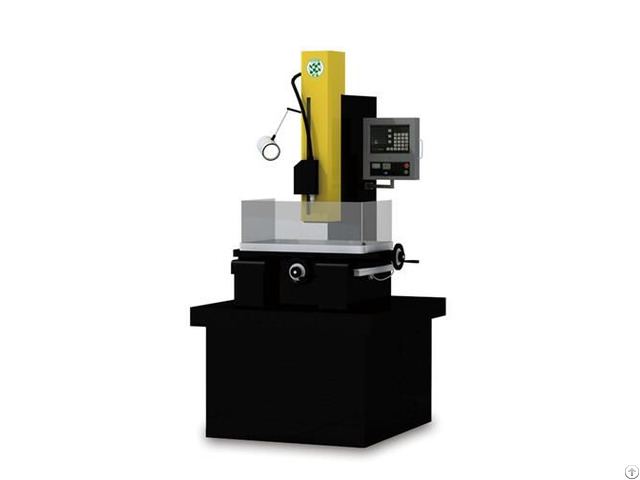

Sj 703 Series Cnc Edm Drilling Machine - China

 Usage Range

The equipment is suitable for processing micro-holes, deep holes, nozzle holes, filter holes, pores and group holes of various metals and super hard conductor materials.

 Equipment Parameters No.

Description Unit Specification Model SJD703SA SJD703A SJD703C

1 Worktable Size (L×W) mm 550×360 550×360 700×400

2 Worktable Travel (X×Y×(Z+W)) mm 400×300×(380+250) 350×250×(380+300) 500×400×(380+300)

3 Max.

Workpiece Weight kg 150 350 500

4 Max.

Working Solution Pressure kg/cm² 60 140 140

5 Working Tank Size (L×W) mm 700×480 800×450 920×645

6 Max.

Working Current A 30(*60a) 30(*60a) 30(*60a)

7 Hole Diameter mm Φ0.3～Φ3.0 Φ0.15～Φ3.0 Φ0.15～Φ3.0

8 Max.

Drilling Depth mm 300 400 400

9 Max.

Drilling Speed/ mm²/min mm 30-60 (Φ1.0) 30-120 (Φ1.0) 30-120 (Φ1.0)

10 Max.

Depth Diameter Ratio ≥300 ≥300 ≥300

11 Machine Body Dimensions (L×W×H) 900×900×1800 1700×1400×1800 1700×1400×1800

12 Machine Weight 500 1450 1450

13 Control Mode Z-axis CNC controller

14 Digital Display 3 axis digital display

15 Working Material Steel/copper/aluminum and other conductive material

16 Working Solution Tap Water/ Saponified liquid

 Standard Accessories No.

Description Form/Model

1 Machine Body SJD703SA and SJD 703A

2 Cast Iron H200, H250

3 Carriage Structure Cross

4 Grating Ruler 0.005mm

5 Transformer 6 Circuit Board Amplifier Board, Servo Board

7 AC Contactor 8 Relay 9 Emergency Stop Button, All button and key
