Nzg 31 Internal Combustion Rail Track Drilling Machine - China

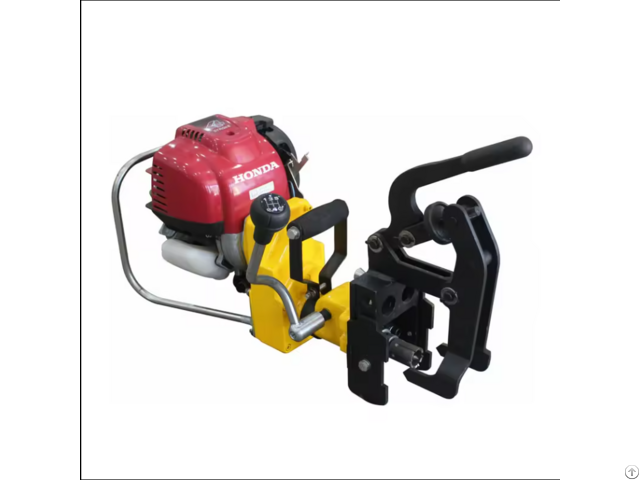

NZG-31 Rail Drilling Machine

NZG-31 rail drilling machine is compact in structure, and it is the lightest drilling machine in China at present.

The rail

clamping device has self-locking function, accurate positioning and high drilling accuracy.

The n-tailed hollow drill bit can be used to clamp the special twist drill with n-tailed shank under 13.5 according to the needs.

It has the function of automatic water supply when drilling.

It is a necessary tool for maintenance, rush repair and overhaul operation of Public Works Department.

Advantage

1 - The water supply at the back of the main shaft is adopted to prevent the cooling water from entering the bearing and reducer, so as to improve the service life of the equipment.

2 - When drilling, the rotary resistance is reduced and the drilling torque is increased.

3 - The drilling time is shortened and the production efficiency is improved.

Specification

Model NZG-31

Type Rail Drilling Machine

Material Stainless Steel

Dimensions (L x W x H) 650 * 230 * 250mm

Engine type four-stroke petrol engine

Engine Power 1.2kW

Idle Rev ≥270r/min

Borehole diameter Φ9.8～36mm

Drilling time ≤25s

Machine weight 17kg
