Mrcm Mr Y3c M5 M20 Newest Design Portable Screw Tap Grinding Tapping Machine With Long Service Life - China

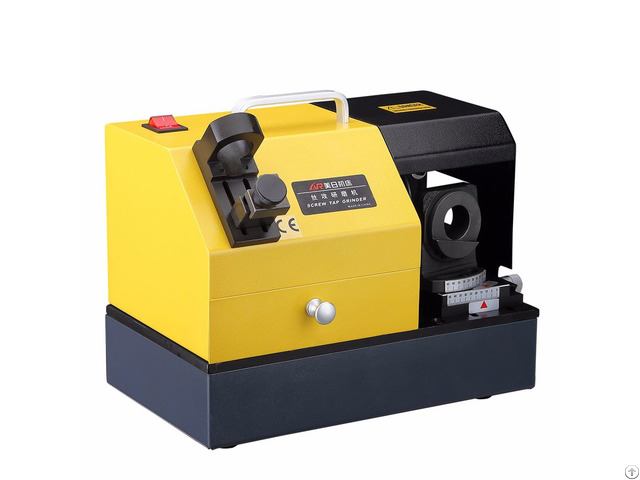

MR- Y3C newest design portable Screw tap grinding/ tapping machine with long service life Product Description 1 - Specialize in grinding screw tap.

It’s precise, easy operation and efficient, also can save large sum of expense for purchasing blade annually.

2 - With Taiwan diamond wheel, can be secondary re-used, with accurate angle and long service life.

3 - The electrical controlled high-rate DC motor features stable power, strong horsepower, efficient and long service life.

4 - Patent product Y3C can grind all the front cutting face, also include the front cutting lip.

Specification Model MR-Y3C

Range M5-M20

Point Angle 5°-30°

Power AC220V

Motor 160W

Speed 4400rpm

Dimension 36*27*31cm

Weight 16KG

Standard Equipment Grinding wheel : CBN (for HSS)×1

Six collets: Φ5, Φ7, Φ8, Φ9, Φ13, Φ14

Two piece collet chuck: 3 flutes *1 piece; 4 fluts*1 piece

Option Equipment Collets: Φ6, Φ10, Φ11, Φ12

Grinding wheel : SD (for Carbide) Details: MR-Y3C SCREW TAP SHARPENER Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results! Y3C-B_02 - jpg INSISTING ON ORIGINAL DESIGN FROM CHINA Y3C-B_04 - jpg Sharpener slots Sharpener straight grooves Sharpener guide angle Y3C-B_06 - jpg SMALL SIZE, SUITABLE FOR ANY PLACE TO DO SCREW TAP GRINDING.

Y3C-B_08 - jpg EASY TO DO THE SCREW TAP SETTING According the diameter of the mill to adjust the scale, the operation steps are clear.

High precision and high efficiency.

Y3C-B_10 - jpg EASY FOR SCREW TAP GRINDING According the the grinding hole, insert the chuck.

It is very clear to see the grinding position when open the cover of grind
