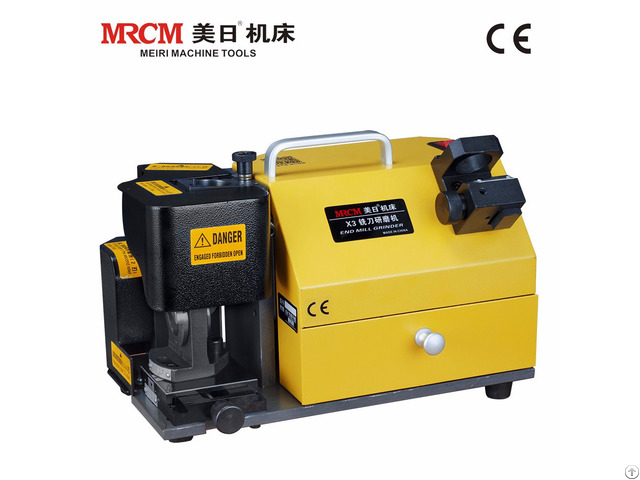

Mr X3 4 14mm End Mill Grinding Sharpening Machine With Ce Certificate - China

MR- X3 4- 14mm end mill grinding sharpening machine with CE certificate Product Description

1 - Portable idiot end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill.

2 - Grinding is accurate and rapid, easy operation with no skill to grind.

3 - With Taiwan diamond grinding wheel, only one piece can complete all procedures.

4 - It can be equipped directly with an accurate angle and long service life.

Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.

Model: MR-X3

Diameter: Φ4-Φ14mm

Power: 220V/160W

Speed: 4400rpm

Point angle: 0°-5°

Dimension: 35*25*25cm

Weight: 14KG

Standard Equipment: Grinding wheel : SDC (for carbide)×1

Six collets: Φ4, Φ6, Φ8, Φ10, Φ12, Φ14

Two collet chucks: 2, 4 flutes ×1 piece; 3, 6 flutes×1 piece Optional Equipment: Grinding wheel : CBN (for HSS) Details: MR-X3 END MILL SHARPENER Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results! x3_03 - jpg INSISTING ON ORIGINAL DESIGN FROM CHINA -1_01 - jpg Two -flute, three-flute, four-flute grinding sample -1_02 - jpg SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.

x3_01 - jpg EASY TO DO THE MILL SETTING According the diameter of the mill to adjust the scale, the operation steps are clear.

High precision and high efficiency.

x3_05 - jpg EASY FOR END MILL GRINDING According the the grinding hole, insert the chuck.

It is very clear to see the grinding position when open the cover of grinding wheel.

x3_08 - jpg

Standard accessories:

_01 - jpg

Grinding wheel ×1 piece Standard is SDC for carbide material Collets ×6 pcs (Φ4-Φ14mm) Collet chuck ×2 piece

_02 - jpg
