Mr 13d Portable Twist Drill Bit Sharpener With Cbn Wheel - China

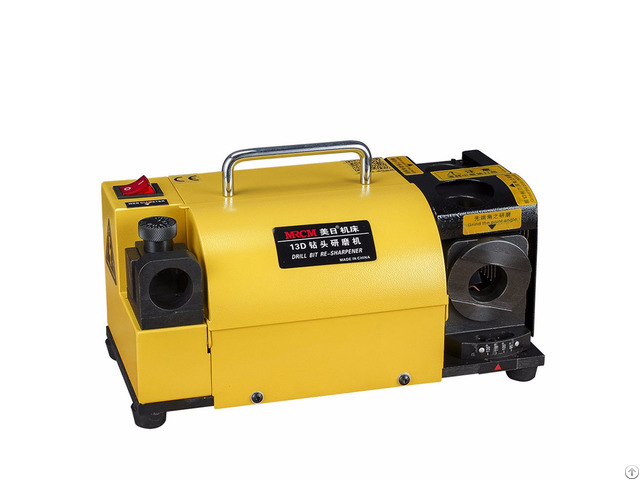

MR-13D Portable Twist Drill Bit Sharpener With CBN Wheel Product Description

1 - Grinding is accurate and rapid, easy operation with no skill to grind.

2 - Economical price that greatly reduces the cost and improves the use effect.

3 - With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.

4 - The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.

5 - Bearing shaft and locking unit.

6 - The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed.

It can control the quality precision and prolong the service life of the drill bit.

Specification Model MR-13D

Grinding Range Φ2-Φ13(Φ15)

Point Angle 95°(90°)~135°

Power AC220V

Motor 120W

Speed 4400rpm

Dimension 32*18*19

Weight 10kg

Standard Equipment Grinding wheel : CBN (for HSS)×1

Eleven collets: Φ3, Φ4, Φ5, Φ6, Φ7, Φ8, Φ9, Φ10, Φ11, Φ12, Φ13

Collet chuck: (Φ2-Φ14)×1 Option Equipment Grinding wheel : SD (for Carbide)

Collets: Φ2, Φ2.5, Φ3.5, Φ4.5, Φ5.5, Φ14, Φ15

Collet chuck: Φ15 Details: MR-13D DRILL BIT SHARPENER More than10 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION 13D-_02 Still use a simple type of operation design, without any grinding experience can also quickly work, Whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results! INSISTING ON ORIGINAL DESIGN FROM CHINA .

pngLip relief angle grinding Point angle griniding Point splitting grinding 10 SECONDS FAST GRINDING, MAKE DRILL RE-USE drill.

jpg SMALL SIZE, SUITABLE FOR ANY PLACE TO DO DRILL GRINDING.

13D-_08 - jpg EASY TO DO THE DRILL SETTING According the diameter of the drill to adjust the scale, the operation steps are clear.

High precision and high efficiency.

13D-_10 - jpg EASY FOR DRILL GRINDING According the parallel line of the grinding hole, insert the chuck, rotate left and right.

It can be finished at one time.

13D-_12 - jpg Standard accessories: .

jpg

Collets ×11 pcs (Φ3-Φ13mm) Grinding wheel ×1 piece Standard is CBN for HSS material Collet chuck ×1 piece

1111111111 - jpg
