Jks380s Crawler Mounted Telescoping Mast Drill Rig - China

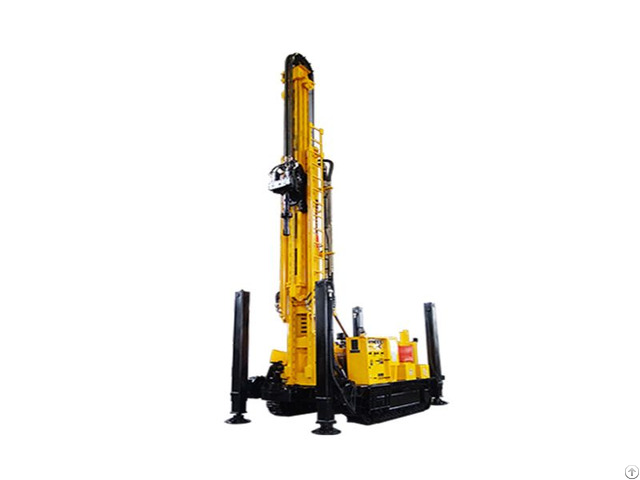

JKS380S Crawler Mounted Telescoping Mast Drill Rig

Crawler Mounted Versatile Well Drilling Rig

Applicable to various working site.

Rated Drilling Depth

300m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes and geothermal boreholes.

Product Features

JKS380S crawler mounted telescoping mast drill rig is a new, efficient, multifunctional hydraulic well drilling rig, mainly applicable to the drilling process of well, monitor boreholes and geothermal boreholes.

When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, with the penetration speed being dozens of times quicker than conventional rotation rigs.

The rig is able to handle casing size up to 6 meters.

In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions

Hydraulic supporters used facilitate the rig erection on site without crane.

Rated Drilling Depth 380m

Borehole Diameter 105～350mm

Engine Power 92kW

Maximum Lifting Force 18T

Axial Pressure ±8T

Lifting Force of Small Winch 1.5T

Rotation Torque 8500N.

m

Rotation Rate 0～40/80rpm

Feeding Stroke 6800mm

Hydraulic Support Leg Stroke 1650mm

Lifting Speed 0～18m/min

Centralizer Height 0.8m

Grade Ability 15°

Hydraulic Generator 24kW/380V (optional)

Dimension (L x W x H) 6200mm × 2080mm × 2650mm

Weight 10.5T
