JKS300B Crawler Mounted Versatile Well Drilling Rig

Crawler Mounted Versatile Well Drilling Rig

Truck Mounted Well Drilling Rig

Its smaller size can be adapted to various construction sites.

Rated Drilling Depth

300m

Application

It is applicable to the drilling process of water wells, monitor wells and geothermal wells, etc.

Product Features

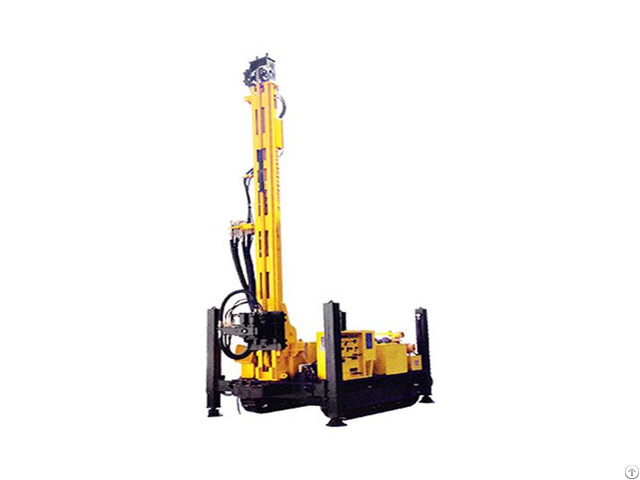

JKS300B crawler mounted versatile well drilling rig is a new type of efficient and versatile hydraulic rig.

It is mainly applicable to the drilling process of water wells, monitor wells, and geothermal wells.



When drilling in the rock layer, the rig adopts DTH hammer for penetration and compressed air for cleaning, with a penetration speed being dozens of times quicker than conventional rotation rigs.

In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions.

Winch can lift stuff upwards of 6m, facilitating installing pipes.

Hydraulic supporters facilitate the rig erection on site without crane.

Smaller size makes it adaptable to various kinds of construction sites.

Rated Drilling Depth 300m

Borehole Diameter 105-350mm

Engine Power 92kW

Maximum Lifting Force 15T

Small Winch Lifting Force 1.5T

Rotation Torque 8500N.

m

Rotation Rate 0-40/80rpm

Feeding Stroke 3600mm

Lifting Speed 0-18m/min

Grade Ability 15°

Hydraulic Generator (optional) 24kW/380V

Flow of Foam Pump (optional) 20L/min

Dimension (L x W x H) 6300mm x 2000mm x 2300mm

Working Size (W x H) 3100mm x 6900mm

Weight 8.5T
