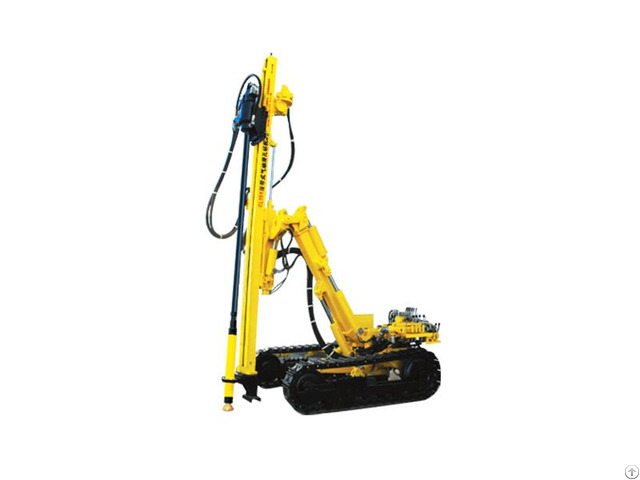

CL351 Crawler Mounted Pneumatic Drilling Rig

Crawler Mounted Hydraulic DTH Drilling Rig

Agile, efficient, reliable

Borehole Diameter

105-165mm

Site Condition

This rig is mainly applicable to the borehole drilling process of mining, quarry, hydropower and construction project.

Product Features

CL351 crawler mounted pneumatic drilling rig, driven by compressed air, is equipped with powerful pneumatic motor, heavy-duty hydraulic boom, and all key parts are imported to secure rigs' quality.

It's mainly applicable to the borehole drilling process of mining, quarry, hydropower and construction project.

Working Air Pressure 1.05-2.46MPa

Borehole Diameter 105-165mm

Max.

Horizontal Drilling Height 3.38m

Grade Ability 35°

Feeding Stroke 3.66mm

Rotation Rate 0-72rpm

Feeding Force 13620N

Lift Angle of Feed 180°

Swing Angle of Feed 50°leftwards and 35°rightwards

Swing Angle of Boom 45°to leftwards and rightwards

Lift Angle of Boom 60°upwards and 19°downwards

Rotation Torque 2510N.

m

Dimension (L x W x H) 2780mm x 2210mm x 1470mm

Weight 5000kg

Air Consumption 17-21m³/min

Dust Collector Wet type / Dry type
