Pvc Pvg Solid Woven Flame Retardant - China

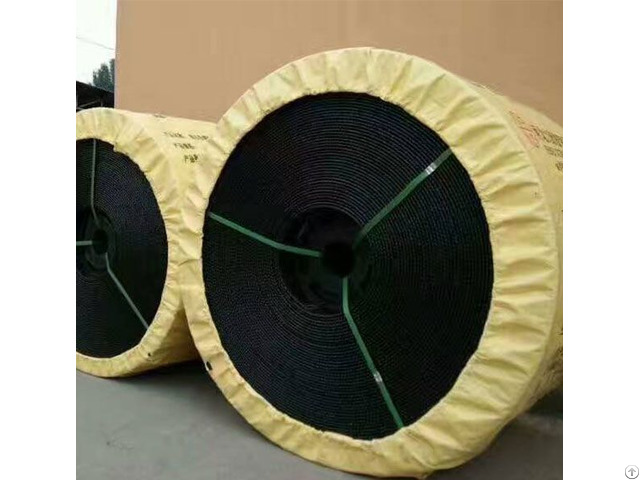

Pvc Pvg Solid Woven Flame Retardant Pvg pvc conveyer belt is made from the whole belt core via dipping and plastifying in polyvinyl chloride (PVC) dipping agent or sulfuration.

PVC conveyor belt for sale: Hengguang Conveying Machinery

Notes:

PVG conveyor belt is made from the whole belt core via dipping and plastifying in polyvinyl chloride (PVC) dipping agent or sulfuration.

It features largely in the high strength, large freight volume and stable conveyance performance.

Besides, it is fire retardant, anti-static, shock resistant, wearable and corrosion resistant.

Useage: It is mainly applicable for the underground well haulage of coal mines, and also the conveyance of materials for metallurgical and chemical industries.

The whole core fire-retardant conveyer

belt is divided into two types: PVC & PVG conveyor belt PVC type conveyer belt's upper and lower layers are PVC coating cover, single-sided tape thickness: ≥1.0mm; PVG type belt's upper and lower layers are nitrile rubber and PVC, single-sided tape thickness: 1.5mm-4.5mm.

PVC type conveyer belt's inclined angle: <16°;

PVG conveyer belt's inclined angle: <20°.

pvc pvg solid woven flame retardant

Standard MT914-2008 Safety factor 10(Breaking strength*1/10)

The Slope <16°C Standard type Degree Breaking strength≥, N/mm Tensile yield≥, % Advising Mindiameter of Transmission Drum Longitudinal Transverse Longitudinal Transverse 680S 4th 680 265 15 18 320

800S 5th 800 280 400

1000S 6th 1000 300 500

1250S 7th 1250 350 500

1400S 8th 1400 350 630

1600S 8th 1600 400 750 Pvc Pvg solid woven flame retardant

Standard MT914-2008 BS3289 HG2805 Safety factor 10(Breaking strength*1/10)

Standard type Degree The slope <20°C Recommend minimum roller diameter Breaking strength≥, N/mm Tensile yield≥, % Longitudinal Transverse Longitudinal Transverse 680S 4th 680 265 15 18 400

800S 5th 800 280 500

1000S 6th 1000 300 630

1250S 7th 1250 350 750

1400S 8th 1400 350 750

1600s 9th 1600 400 750
