Kevlar Roller Tube For Aluminium Extrusion Industry - China

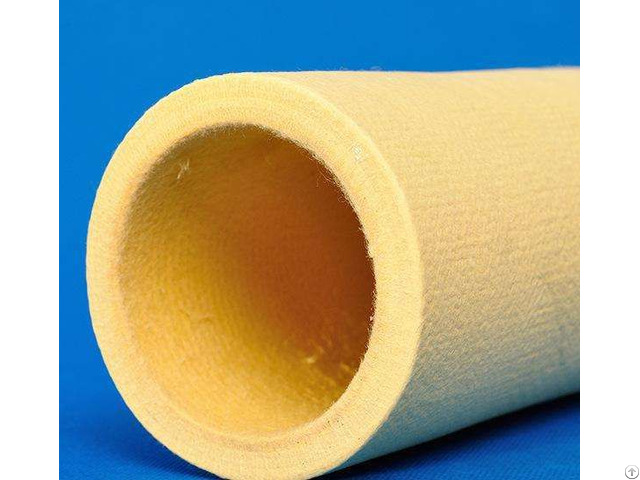

Kevlar roller tube for aluminium extrusion industry Kevlar roller tube Description:

During the past few decades, application areas for aluminium have steadily increased.

Aluminium is everywhere, and the applications for this element are many.

Aluminum's flexibility, strength and light weight are some of the qualities that make it outstanding than other substance.

Aluminum extrusion is complex, that's why our industrial felt products play a key role to provide extreme protection to minimize waste and non-conformance.

As the design of extrusion profiles becomes more intricate and wall thicknesses decrease, aluminum protection will only become more important.

Confidently, our heat felts are up to the challenge.

At every stage, from handling to processing to storage to transport, our products provide the protection an entire industry relies on.

They have become the standard for modern extrusion handling systems, replacing graphite in many applications to alleviate issues with marking, dust, denting and cracking.

Kevlar roller tube Specification:

Material : kevlar

Color: Yellow

Temperature: 400°C continous use and 500°C peak time.

Thickness : 5-12mm of normal dimension 6mm, 8mm, 10mm.

Inner dia: 50mm, 60mm, 72mm, 76mm, 77mm, 96mm, 100mm, 110mm, 115mm, 150mm.

And the other roller inner dia between 50mm to 150mm is possible.

Length : 100-2500mm of normal demesion 400mm, 450mm, 500mm, 600mm.

Application

1 - Applied to aluminum profile extrusion cooling table walking beams.

the max temperature resistance 500℃

2 - This kind of Kevlar felt cover is main used for the felt type cooling table(First and Second stage) in the Aluminum Extrusion Industry

3 - Commonly used for the Initial Table and the forepart of Run-out Table of the aluminium extrusion lines.

Kevlar roller tube Advantage

1 - Easy to install, everyone can operate

2 - Small weight, convenient storage

3 - The blanket has no joint as a whole and there is no break zone

4 - The surface is soft and flat, will not scratch the profile

5 - Temperature resistance 500°C
