Calender Machinery Roll To Printing Felt Belt - China

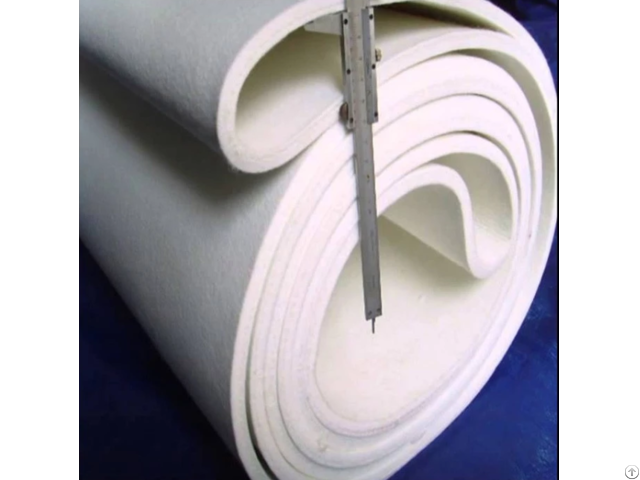

Calender Machinery Roll To Roll Printing Felt Belt Description:

The heat-transfer machine blankets’ temperature resistance is 280℃, it is made of imported raw material, blanket with smooth surface, no wandering, not springing, no burr, long service life and shrinkage rate will be controlled within 2%, this kind of endless felt belt is very suitable for all kinds of brand machine.

Specification:

Color: White Technology: Needled punched

Material: Nomex

Material Feature: Heat Resistant

Thickness: 6mm, 8mm, 10mm

Width: 600-3500mm

Length: 1800-30000mm


Continual temperature: 220℃

Peaking temperature: 280℃

Density: 2800g/m²-3600 g/m² Advantage

1 - 100% nomex raw material

2 - The max temperature resistant 280℃

3 - Endless type - no joint(Don't worry about the fracture)

4 - MisalignedOur base cloth is use endless industrial silk.

Testing report showed the misaligned rate is about ±3mm.

enclosed our base cloth for your consideration

5 - ShrinkageThe base cloth can control the shrinkage rate in 2.5%--3%.

Application

1 - Selection Of Brand Raw Material, Common Specifications Have Temperature 160-180℃ And 220-280℃.

2 - The Felt Belt Contains Heat Shrinkable Fiber Material Inside, The Felt Will Automatically Shrink After Heating, Wrapped Tightly.

3 - The Belt Surface Formation, Uniform Density, Good Resistance, Long Work Life.

Direction of our felt belt 1 - The blanket must be install as the direction of the arrow, fixing both sides of the perimeter

to see if the perimeter is the same.

2 - Adjust the machine pressure within 2kg.

heat up to 150 ℃, idle for 2 hours; heat up to

170℃, idle for 2 hours; heat up to 190℃, idle 3 hours( important); heat up to 200℃, idle for 2 hours.

3 - Then the belt will suitable for your machine, you can adjust the machine pressure in 3--5kg

according to your needed and start to printing.
