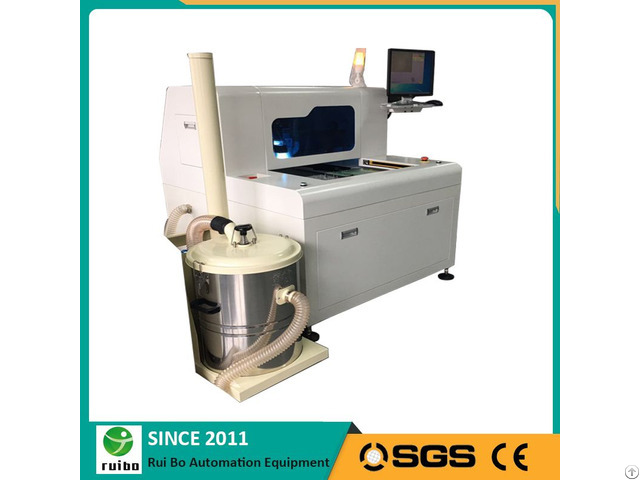

Universal PCB Cutter Machine with Competitive Price for Electronics Assembly Line

Apllication for PCB Depaneling Machine

©The best solution of PCB cutting;

©Avoid solder crack or part damage caused manual board folding;

©Avoid stress caused by board folding of machine;

©Suitable for arc and curve cutting of PCBA;

©Suitable for small and multiple connected board cutting, e.g.board of mobile phone, digital camera, bluetooth, DV.

Specification for Automatic PCB Separator Machine

Equipment size L1220mm*W1450mm*H1420mm

Working area (machinable stroke) X: 300mm, Y1: 400mm, Y2: 400mmZ: 0-80mm

CCD SONY (540 x); Lens (optional)

Lead screw and guide rail TBI

Servo motor panasonic A6 400W and panasonic A6 200W

Electrostatic eliminator adk-801adk-801

Industrial host Dell (optional)

Motion control card PI9074

Display, control system Dell, Windows7

Spindle speed 3000-42000 RPM (optional)

X, Y, Z axis drive speed X, Y axis at least 700mm/s, Z axis at least 300mm/s servo mode drive

Cutting PCB thickness range 0.5-3mm

Cutting precision Ability 0.02mm (must item) with cutting straight line, arc, circle, L, U, stamp hole machine, V card slot machine type of ability must item

Power (including dust collector) : 5000W

Tool replacement manual tool change (special tool wrench replacement is required)

Spindle cooling system Air cooling mode

Power and mode of dust collector 3.5kw 380V three-phase motor, external type upper/lower dust collector (optional)

Pressure above 0.6mpa

The warranty period One year or more.

(mandatory)

Programming Online

Edit function: s traight line, hole, arc, circle, V slot

Tool life detection tool life According to the number of user set sinking section, the number of products and cutting.

Etc.

Motor overheating detection overload, overheating, low voltage and other protective functions

Servo overload detection overload, low voltage, line is normal and other protective functions

Spindle life tracking spindle Automatic detection

Sub-board counting counting and timing

Machine error recording software Automatically remembers all alarm records

Axis position accuracy 0.001mm

Dividing plate precision 0.01mm

Scan Method QR code

MES system Support selection

Advantages of PCB Depaneling Cutter

1 - Solve the current mixed board (stamp hole and V card slot) to separate replacement board shortcomings.

2 - QR code automatic scanning (optional), MES system connect (optional)

3 - Upward or downward dust collection mode according to customer requirements, with good dust collection effect.

(upper and lower vacuums are interchangeable)

4 - Production records are collected from time to time.

5 - The base plate is more firmly fixed in cutting to avoid the cutting precision error caused by poor positioning of the base plate.

6 - Image scanning and imposition.

7 - Special fixture making, easy to fix the product to be cut, to ensure the high precision cutting requirements.

8 - When cutting, the front part of the spindle is equipped with an anti-static generator to continuously blow air, so as to reduce the static electricity generated during high-speed spindle cutting and avoid the damage of parts caused by static electricity.

9 - Safety door is adopted to reduce noise and dust and improve safety.

Vacuum cleaner with vacuum box (according to the capacity of cutting demand or dust collection time scheduled maintenance).

Software compensation function advantage

1 - Automatic MARK positioning correction system, moving path display tracking, auto focus correction function, cutting precision is higher, to meet higher precision products.

2 - The automatic alignment correction function has higher cutting precision.

As long as the PCB is deflected within the range of 80mm2, machine vision can perform automatic route correction, which relaxes the operator's accuracy requirements when placing the board.

Greatlyimproved work efficiency.



Benefits of PCB Board Depanelizer 1 - Simple and friendly user-interface design with HMI Windows 7 operating system.



2 - Automatic cutting path correction system.

3 - Can single-step program editing and modification by high pixel CCD program production and block program.

4 - Fixture-based highly efficient dust vacuum system.

5 - Cost Effective.

Not only are depaneling needs taken care of with efficiency and simplicity, but the low cost will save money and time.

6 - The price is undeniably practical and the ease in which the machinery can be operated.
