Apllication for PCB Depaneling Machine

©The best solution of PCB cutting;

©Avoid solder crack or part damage caused manual board folding;

©Avoid stress caused by board folding of machine;

©Suitable for arc and curve cutting of PCBA;

©Suitable for small and multiple connected board cutting, e.g.board of mobile phone, digital camera, bluetooth, DV.

Description of PCB Cutting Machine

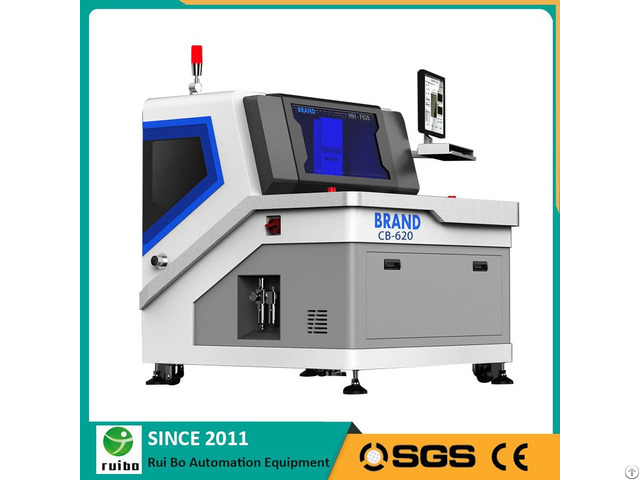

CB-620F automatic cutting machine is a device that mainly USES milling cutter to operate at high speed to separate PCB board by pre-edited path.

It replaces the cutting defects of manual fracture, c-cut or PUSH, improves the product quality and reduces the scrap rate.

Specification for Automatic Milling PCB Separator Machine

Dimensions(W*D*H): 1220mm*1450mm*1420mm

Weight: 550KG

Height offset: 60~110mm

Motor type: JiaBao series

Positioning repeatability: 0.001mm

Axis working area(max): 680mm*360mm*50mm

PCB fixation: standard, specialization

PCB loading/unloading: manual

PCB size (max): 322mm*322mm

PCB thick (max): 5mm

Rigidity fixturing: standard

Fixturing fixation: machinery

Power: 400W

Spindle: 50000rpm/min

Protect: self/wind cooling

Change cutter: Specialization

Main Features of PCB Router Machine

1 - Using double slide into place device, reduce the cutting waiting times, increase production capacity.

2 - Avoid artificial flap caused by the cracking of tin and part damage and other issues.

3 - Avoid using blunt or fold, produced by mechanical stress.

4 - Suitable for the finished plate arc and line cutting.

5 - Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.

Advantages of PCB Depaneling Cutter

1 - X10 zoom-in image makes programming easier&increase the accuracy of point setting.

2 - Automatic alignment compensation by CCD camera.

3 - AUTO MARK offset system.

CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

4 - Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting.

And routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.

5 - CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

Software compensation function advantage

1 - Automatic MARK positioning correction system, moving path display tracking, auto focus correction function, cutting precision is higher, to meet higher precision products.

2 - The automatic alignment correction function has higher cutting precision.

As long as the PCB is deflected within the range of 80mm2, machine vision can perform automatic route correction, which relaxes the operator's accuracy requirements when placing the board.

Greatlyimproved work efficiency.



Software programming is easy to learn and understand

1 - Program teaching can be manual and teach input, with import and export, link copy, path copy edit and modify function, which can simplify the programming.

The left and right workbench programs can be copied to save programming time.

The cursor takes the point programming mode, which greatly improves the programming efficiency and reduces the programming time.

2 - CAD can be converted into DXF and imported directly into programming.

Benefits of PCB Board Depanelizer

1 - Simple and friendly user-interface design with HMI Windows 7 operating system.



2 - Automatic cutting path correction system.

3 - Can single-step program editing and modification by high pixel CCD program production and block program.

4 - Fixture-based highly efficient dust vacuum system.

5 - Cost Effective.

Not only are depaneling needs taken care of with efficiency and simplicity, but the low cost will save money and time.

6 - The price is undeniably practical and the ease in which the machinery can be operated.
