Steel Angle Roll Forming Machine For Metal L Profiles Corner Production - China

Angle steel forming machine, commonly known L profile roll forming machine, For production long strip of steel that is perpendicular to each other on both sides.

There are equal angle steel and unequal angle steel.

Steel frame keel machine metal L profile steel angle roll forming machine manufacturer Angle steel for a variety of building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transport machinery, ships, industrial furnaces, reaction towers, container racks, cable trench brackets, power piping, busbar bracket installation, and warehouse shelves.

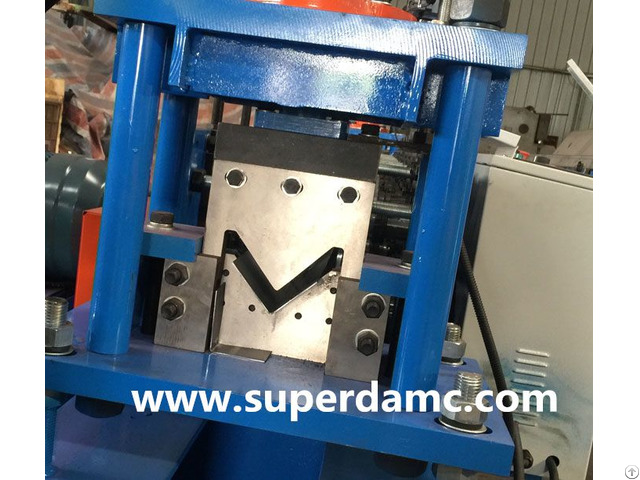

Ⅱ, Metal L profile steel angle roll forming machine production line process Uncoiler straightener 2 in 1 → Guide device → roll forming machine →shear device (including knife)→ finished product rack (Ⅴ)Main Forming machines (for panel width 65mm with reinforcemnt design ) 5.1 Forming Roller：14 stations, and add Rub-roll, To make sure the surface profile no scratches.

5.2 Side Panel：T.

18mm, A3 steel Heavy duty 。 5.3 Rolling speeding: 2-8 m/min。 5.4 Roller material：#45, overall quenching, hardness HRC56-62 ℃.

5.5 Motor power：4KW。 5.6 Main Roller ：￠65mm, 45 #。

5.7 Equipment base: 400# H type using welded steel plate.

5.8 Transmission: chain drive.

5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety.

And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
