Oxygen Lance Nozzle Forging And Casting Blank Moulding - China

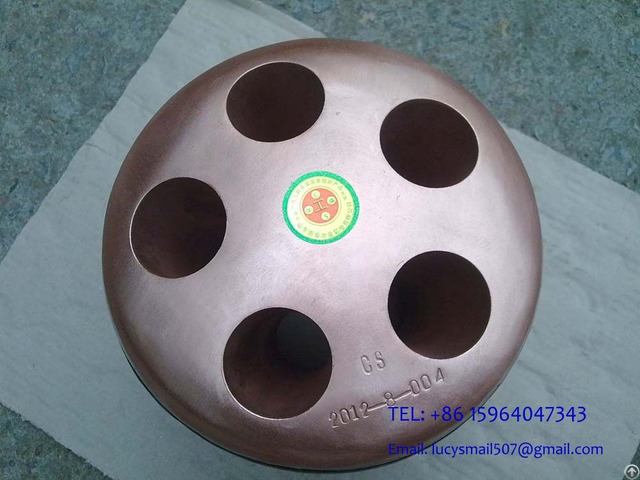

Forging & casting blank moulding oxygen lance nozzle is composed of oxygen inlet pipe terminal, nozzle body, water fender, inner pipe, middle pipe and outer pipe.

The nozzle body is one-piece structure moulded by forging & casting blank.

There are oxygen inlet hole shrinkage cone Angle β at the bottom of oxygen inlet pipe terminal corresponding to spray oxygen pipe’s position and quantity of the nozzle body.

The distinction between it and ordinary lance nozzle is that the nozzle body is made using integral forging molding process which effectively improves the density and hardness of nozzle body, especially around the end face and the export, changes the physical properties, mechanical properties of the nozzle., improving density from 8.5 to 8.9, hardness from As-cast hardness HL50 to HL350~380, and enhances thermal ability of nozzle, making slag adhesion on the nozzle end face difficult and easy to fall off and high temperature furnace slag and molten steel erosion of the nozzle end surface lessen.

Furthermore, after forging, wall thickness becomes uniform and compact; cavity finish improved; water resistance reduced, under constant water supply pressure, the nozzle of the water supply intensity improved and the cooling effect ensured.

The service life of nozzle is greatly increased to 2 times of conventional nozzle.

Company Contact:

• Posted By: shandong chongsheng metallrgical oxygen lance co.,ltd

• Phone: +8618853671865

• Address: No.5199 yingqian street, weifang , shandong , China

• Email:

• Website: http://www.csyq.cn

• Business Description: Shandong Chongsheng Metallurgical Oxygen Lance Co., Ltd is an enterprise specialized in research and production of metallurgical oxygen lances and nozzles, located in Weifang Hi-Tech Industry Development Zone.

  Key products in our company are oxygen lances and oxygen lance nozzles for various kinds of converters, electric furnace and electrode grips for tuyere, slag notch, assembling&forging nozzles.

  We supply nozzle products to various steel plants such as Bao Steel, Wuhan Steel, Capital Steel, Ma Steel and so on with the market share of 70 percent at home.

  In addition, our products have substituted products imported from Japan, America, Germany, France, Italy.

  At the same time, we export our products to Belgium, Spain, Romania, Bosnia and Herzegovina, Ukraine, Australia, New Zealand, Turkey, Vietnam, India and Brazil, etc.
