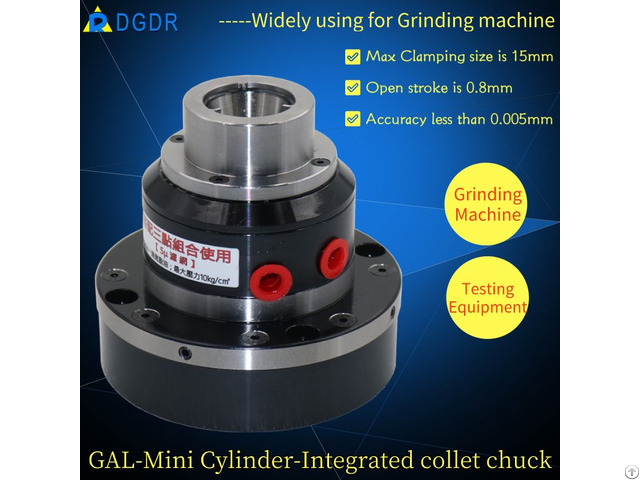

High Precision Mini Lathe Air Collet Chuck For Testing Equipment - China
price: 1299.00 Dollar US$
DGDR GAL-15 back-pulled precision pneumatic rotary chuck adopts cylinder front structure.
It can be relaxed and clamped by direct charging.
The clamping force can be adjusted by adjusting the air pressure.
The clamping repeatability accuracy of GAL-15 is within 0.005mm, and the ontology accuracy of GAL-15 is within 0.002mm.
GAL-15 high precision pneumatic rotary chuck is widely used in five-axis tool grinder, CNC lathe, CNC grinder and all kinds of high precision special purpose machines.
GAL-15 has been successfully used in Grinding machine, milling machine, optical parts, electronic part, medical part and other precision parts to improve production efficiency.
1 - High precision, high rotary speed and high rigidity structure.
2 - Inside with a rotary cylinder, no need to install an extra cylinder, saving facility costing.
3 - The air pipe can be directly connected to the side to complete the loosening and clamping.
4 - The ontology accuracy is within 0.005mm, and the clamping repeatability accuracy is within 0.005mm.
5 - Force feeding material, non-stop design
6 - Small size, max clamping size is 15mm
7 - Body material is steel
8 - With high strength, light weight, long life
9 - Waterproof and dustproof design
Company Contact:
- Posted By: DONGGUAN DERUI PRECISION MACHINERY CO., LTD
- Phone: +8618925547774
- Address: NO.136,shida road , liaobu town, dongguan city, guangdong province, china, dongguan , guangdong , China
- Email:
- Website: https://www.dgdrchuck.com/
Published date: June 3, 2020
- Business Description: Derui Precision Machinery Co.
Ltd is specialized in manufacturing various of High Precision Chuck.
Including two parts: Hydraulic chuck and Pneumatic Chuck.
Our main products include Cylinder-Integrated Collect Chuck/Rotary Power Chuck/Expanding Mandrel/Spindle Collect Chuck/Air Diaphragm Chuck/Precision Collect Chuck/3-Jaw Diaphragm Power Chuck/Stationary Chuck etc.
