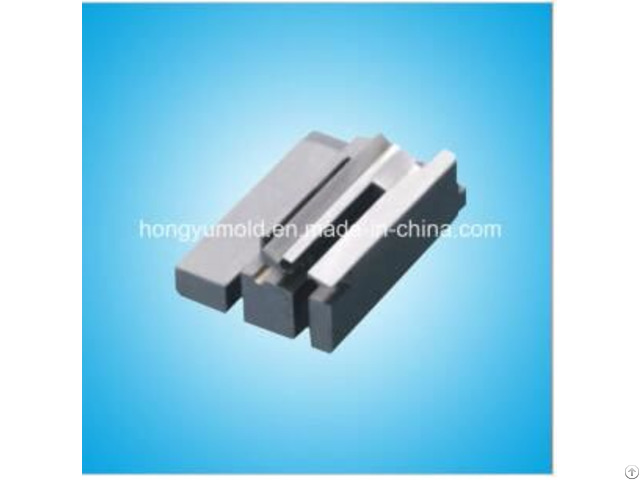

Custom Made Tungsten Carbide Stamped Mould With Zero Defect High Precision Stamping Die Rd30 Rd50 - China

Type: Progressive Die

Material: S390/HSS/Asp23

Surface Processing: Hip

Process: Forming Process

Tolerances: 0.002mm

Name: Punch

Size: 10mm*12mm*50mm

Cutting Length: 15mm

Origin: Dong Guan

Processing Type: Shaping Metal

Mould: Multistep Progressive Dies

Fine Blanking: Open

Industry: Metal Stamping Parts

Customized: Customized

Processing: Profile Grinding(Pg)

Tolerance: 0.002mm

Specification: 10mm*12mm*50mm

HS Code: 8207300090.

The cutting length area with mirror surface, the surface roughness is around Ra0.03, tolearnce can be controlled in ±0.002mm.

Grind cutting area only, without any hand polishing.

Special Introductions:

Material: RD30(Carbide)

Processing Machine: Surface grinder, Profile Grinder

Outside contour Tol: ±0.001mm

Profile Tol: ±0.002mm

Measuring instruments: Projector, Toolmaker Microscope

Design: non-standard parts, according to customer's request

Quotation: We will quote in tow hours once we receive inquiries

Delivery Time: 2days

Packing: Carton, attached Quality Control report .

Environments:

1 - Processing Environment:

Whole production department with stable temperature around 21ºC to keep the accuracy of machines.

2 - QC Environment:

Whole QC department keep the same temperature 21ºC to make sure the parts in shape.

Materials:

We import various kinds of grade carbide to meet worldwide customers' demand:

Application fields of carbide:

Ultrafine grades: grain size 0.2-0.5um, thanks to their high transverse rupture strength these grades are particularly suitable for stamping thin sheet metal and foils with extremely thin-walled punches.

Submicron grades: grain size 0.5-0.8um, For difficult abrasive materials and wherever there is a tendency for galling; Excellent wear resistance;

Fine/Medium grades: grain size 1.3-2.5um, the standard grades for blanking and stamping tools; Ideal compromise between wear resistance and tracture toughness with very good edge stability.
