Mr Chv 130a Universal Hot Sale Drill Press Vise With Best Quality - China

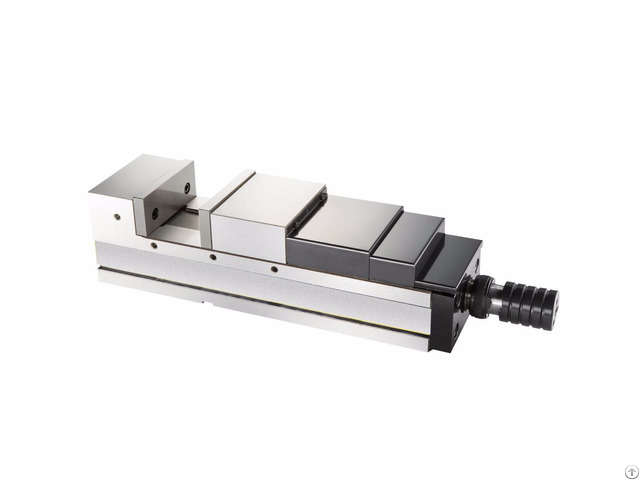

MR- CHV- 130A universal hot sale drill press vise with best quality Product Description

1 MC double force turbocharged vise, suitable for vertical, horizontal integrated cutting machine FMS system to do heavy cutting.

2 - Clamping light, efficient and labor-saving, can reduce the labor strength of the staff.

The 3 - tiger mouth adopts the lower pressure structure of the semicircle ball angle, which can eliminate the floatation of the tiger's mouth plate and the inclination of the workpiece.

4 - A high tensile strength spheroidal graphitized cast iron (FCD60~60kgs/mm) is used in the body of the vise.

(80000psi) strong resistance to tension and not easy to deform.

5 - Seal and other key parts are all famous brand products of German oil.

Model: MR-CHV-130A

Drive Mode Manual

Metial Spheroidal graphite cast iron

Hardness HRC 52-60

Parallelism Whthin 0.003mm/100mm

Squareness Within 0.005mm/100mm

Precision 0.008mm

Machine Type Grinding Machine

Package Canton Specification MR-CHV-130A High-precision MC compact Mechanical/Hydraulic Vise/Angle Vise MC angle solid / kimbde precision oil pressure vice: high power type omnibearing precision oil pressure vice, suitable for vertical, horizontal comprehensive cutting center, general milling machine, radial drill, planer, boring machine, and other mechanical processing area.

Unit: mm Mode A B C D F H J J3 K N X Y Clamping force Weight

CHV-100A 475 340 135 101 133 15 0-125 125-320 48 18 45 85 36KN 30KG

CHV-130A 540 405 135 131 150 15 0-180 180-380 55 18 65 95 46KN 40KG

CHV-160A 630 495 135 161 163 15 0-240 240-470 58 18 65 105 56KN 60KG

CHV-200A 750 570 135 201 173 15 0-280 280-540 63 18 82 115 71KN 83KG
