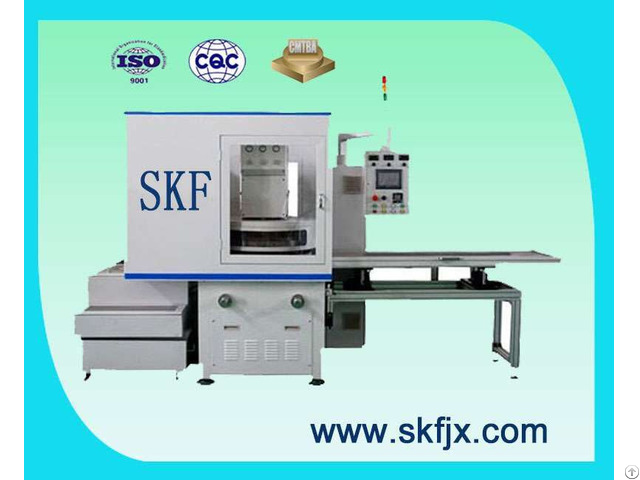

High Precision Double Sided End Surface Grinding Machines - China

Over view:

When the machine is working, upper and lower grinding discs as well as the planet wheel rotate simultaneously to drive work pieces to do reciprocating planet motion between the two grinding discs.

Various grinding discs such Diamond grinding plates, CBN grinding plates, Cast iron plates, GC plates, etc can be adopted for different requirements of various products, so as to achieve double side precision grinding on work pieces made from various materials.

Our equipment take advanced probe side measurement and Sony size measuring controller to realize real-time online measurement control on processed work pieces.

Features:

1 - High strength cast iron machine body

2 - Three independent adjustable driving motors are applied to upper disc, lower disc and inner ring

3 - Upper working disc can be manually or automatically swing out

4 - Pneumatic control

5 - Digital size control system

6 - Inner ring rotates under servo driving 7 - Semi-automatically loading and unloading device can be configured 8 - Constant temperature cooling and filtering system

9 - Touch screen control interface 10 - Compressed protection for upper working disc

11 - Strong fault diagnosis function 12 - A plurality of functions for selection

13 - No or less maintenance, simple and convenient operation 14 - Customized processing solution, to improve product capacity Application fields:

Hydraulic elements: Blade pump, steering valve, plunger pump, gasoline pump, hydraulic motor, etc.

Compressor parts: Air condition compressor blade, piston, cylinder, refrigerator compressor valve plate, etc.

Engine parts Internal combustor part, booster pump part, oil nozzle/ oil pump part, etc Various hard alloy blades, high precision bearing, sealing piece, watch part, ceramic valve core, magnetic material, etc

Any other hard and brittle materials which required a high precision surface quality We have served: GKN, MIBA, SADEL, Contact: +86 13581684550 grace at skfjx.

com

Company Contact:

• Posted By: Xinxiang SKF Machinery Co., Ltd.

• Phone: +86-0373-3533138

• Address: Venture Park street, No.2 D20-21of new high tech Xinxiang, Henan, China, Xinxiang , Henan , China

• Email:

• Business Description: Xinxiang SKF machinery Co., Ltd. is a high-tech enterprises integrate scientific research, manufacturing, sales and service as a whole.

  We have brought in advanced manufacturing and testing equipments, specialized in the production of SKF700, SKF720, SKF630, SKF1000 high-end precision double end face grinding machine series, the precision can up to 0.001 mm, our machine are able to replace imported grinding machines, can be widely used in automotive steering valve parts, compressor spare parts, oil pump nozzle parts, engine parts, high precision bearing, seal, piston rings, cutting, carbide insert, ceramic valve core, magnetic materials, and other products of double end face grinding processing.

  Product quality and production capacity can meet the demand of different users from different industries.

  We controle every procedure and mahcine quality strictly, and have got the certification of ISO-9001：2008 !

  To satisfy customer uttermost is our goal; Innovation and development is our eternal theme! Hope to go with you to get a win-win future!
