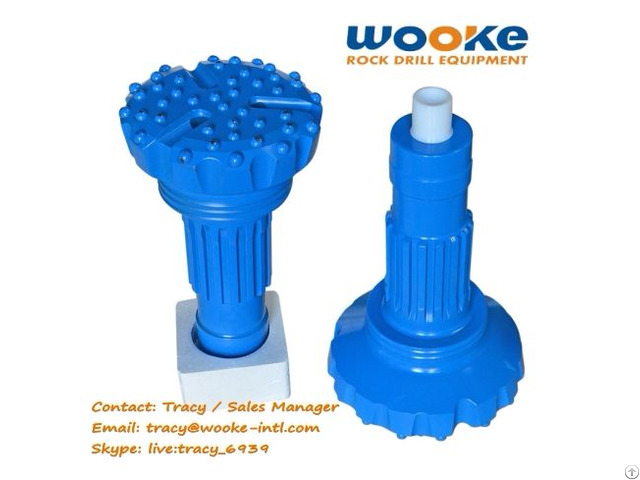

High Performance Down The Hole Dth Hammer Tungsten Carbide Button Drill Bit - China

Model number: DTH Button Bit

Processing type: forging

Material: YK05 + alloy steel

Bit size: 3-12"

Shank length: 130-332mm

Bit diameter range: 78mm-345mm

Bit face shape: flat, concave, convex, drop central, or other as required

Carbide button shape: spherical (dome, round, ball), ballistic

Packing: 2 bits in a carton, with foam inside, 10 cartons in a wooden case, secured by steel tapes

Apply to: surface and underground mining, tunneling, geological exploration, quarries, dam construction, construction, water well

Please note that:

√ OEM

Numbers of air holes, bit diameter, number and shape of buttons, face shape, all can be customized √ Standardization

All Wooke drilling tools are standardized and our DTH button bit shanks goes perfectly well with the famous brand such as Atlas Copco, Ingersoll-Rand, What makes Wooke products unique and unsurpassed?

With special heat treatment, our DTH button bits have a longer service life than other similar Wooke Rock drill equipment company ltd established in 1995 is the top manufacturer of high air pressure DTH hammers and bits from China, who has its self-owned intellectual property and strong R and D capability, she also has employees exceeds 300, factory space more than 40000m2, experience more than 23 years

She is honorably developed and OEM the best rock drilling tools in China, which includes:

1 - DTH hammers

2 - DTH button bits

3 - Top hammer rock tools: shank adapters, couplings, top hammer bits

4 - Various eccentric and symmetric system

5 - Reverse circulation hammers and bits 6 - Drill pipes

7 - Adapters: box-pin, box-box, pin-pin Wooke's DTH button bits size assortment

Bit size DTH bits diameter Shank type of DTH bits

2", 2.5" 76mm-80mm CWG76, BR2, DHD2.5N

3", 3.5" 90mm-105mm COP34 (DHD3.5, IR3.5), Mission 30, BR3, Mach 33, Wooke30

4" 105mm-130mm COP44 (DHD340, IR4), DHD340N, Mission40, QL40, SD4, BR4, Mach44, TD40, Wooke 40

5" 133mm-152mm COP54 (DHD350, DHD350R), DHD350N, Mission50, SD5, QL50, QL50N, Wooke50

6" 152mm-254mm COP64 (DHD360, IR6), DHD360N, Mission60, SD6, QL60, QL60N, Wooke60

8" 194mm-305mm COP84, DHD380, DHD380N, Mission80, SD8, QL80, QL80N, Wooke 80

10" 240mm-311mm Wooke 100

12" 305mm-445mm Wooke 120

*Face design and button type and diameter all can be customer made, please contact our sales for more information
