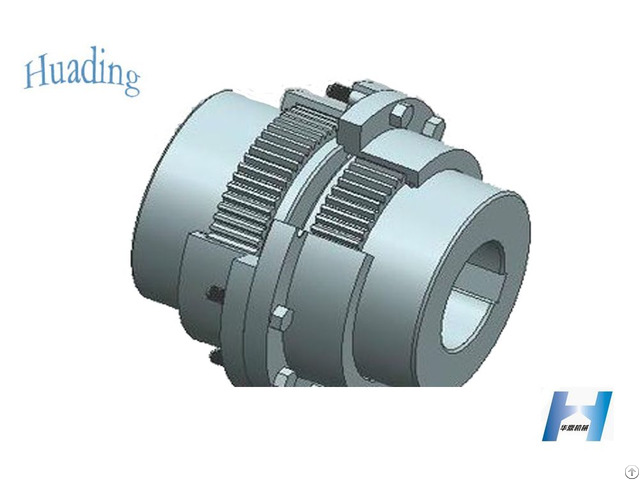

GICL Type Drum Gear Coupling

Drum Gear Coupling

· Model: GICL Type

· Norminal Torque: 0.8kN.

M - 3200kN.

M

· Allowed Rotation Sppeed: 7100rpm -3200rpm

· Connection: Keyway & Shaft hole

· Shaft Hole Diameter: 16mm - 560mm

· Shaft Hole Length (Y): 42mm - 800mm

· Applications: Metallurgy, mining, lifting and transportation industries, petroleum, chemical, general machinery and other heavy machinery shaft drive.

GICL-type drum gear coupling sealed end is separated type, the tooth space width is big, the allowable radial displacement is big, and can connect Y, J1-type shaft hole.

Hot sale various high quality Drum Gear Coupling, GIICL & GICL Type Drum Gear Coupling, GCLD & GllCLZ Drum Gear Coupling, GICLZ Type Drum Gear Coupling, Rigid Flexible Coupling.

Welcome to contact us.

Drum-type Gear Coupling Features (compared with the straight-type coupling):

1 - High carrying capacity

The bearing capacity of the drum-type gear coupling is 15 to 20% higher than that of the straight-type coupling in the same outer diameter and the maximum outer diameter of the coupling.

2 - Large angular displacement compensation

When the radial displacement is equal to zero, the allowable angular displacement of the straight-tooth coupling is 1°, but the allowable angular displacement of the drum gear-type coupling is 1°30", 50% increased.

With the same modulus, tooth number, tooth width, the allowable angular displacement of the drum teeth is larger than of the straight teeth.

3 - Drum-type gear surface has improved the internal and external contact conditions, which avoids the drawbacks of angular displacement of the mandibular tooth edge extrusion and stress concentration, in the meanwhile improves the tooth surface friction, wear conditions, reducing noise, long maintenance cycle.
