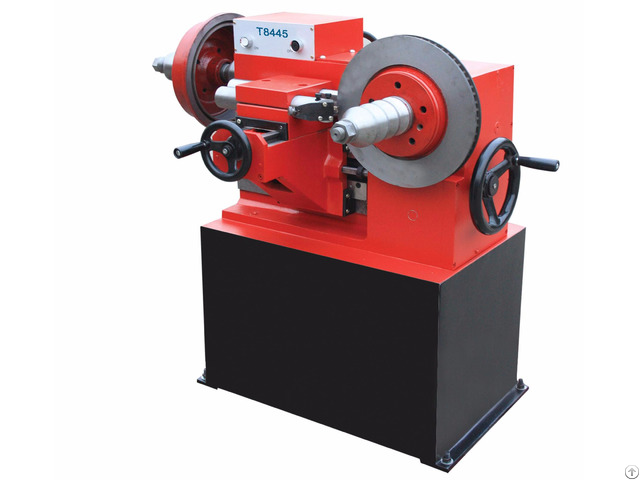

T8445 Brake Drum Lathe Machine - China

Description Brake drum lathe machine T8445 is widely used to repair brake disk and brake drum of cars, buses and trucks, its maximum processing diameter is 450mm.

It is high efficiency, easy operation and energy saving.

Brake drum lathe machine is the effective machine tool for the car repair shop.

1 - The brake drum lathe machine has strong rigidity.

The transmission system and the base are made ad a whole to increase the rigidity of the machine tool.

2 - Wide processing range.

The effective stroke basically covers all sizes of the car’s brake disc or brake drum, especially suitable for larger brake discs such as BMW, Benz, Audi, etc.

3 - It can realize the rapid lifting and the walking knife move forward and backward, improves the working efficiency.

4 - Very practical.

Comparing the high cost of change new brake disk and brake drum for famous car, repairing is much better choice for car owners.

Main features of T8445 Brake Drum Lathe machine It can process different sizes of brake drum, brake disc and brake shoe of automobiles.

The maximum processing size is 450mm for brake drum, 400mm for brake disc.

Automatic oil pump lubricated gearbox.

Automatic centered equipment to make cone clamping clip and two side feed simultaneously when process big car brake disc.

Standard lathe accessories box and cone sets to satisfy most car models.

3 - T8445 Technical Parameters Item Unit Parameters

Brake drum diameter mm φ180-φ450

Brake disc diameter mm ≤400

Working travel mm 170

Spindle rotation speed rpm 30/52/85

Feeding capacity mm/r 0.16

Main motor KW/rpm 1.1/1400 Overall dimensions(L×W×H) mm 690×890×880

Net weight Kg 320 4 - About Haishu Machinery Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying automobile wheel production and repair solutions to worldwide customers.
