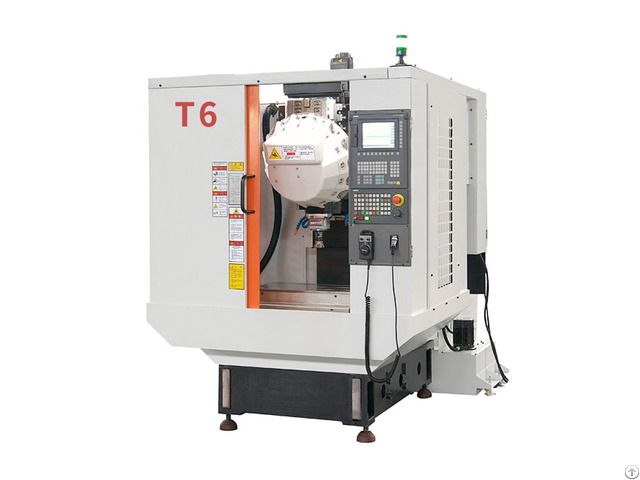

T6 Cnc Tapping Center - China

CNC tapping center manufacturer uses the best casting materials

The major structural parts are manufactured from high-quality Meehanite cast iron (HT300A+), hardened to over HB190 and tempered to relieve stress.

cnc tapping center The Best Possible Structural Design

T6 CNC tapping center uses the new structural design is more in line with mechanics, improving the overall performance of the machine tool and improving the machine tool usage time.

Items Unit T6

Travel

X axis mm 600

Y axis mm 400

Z axis mm 300

Distance from spindle nose to table mm 150-450

Distance from spindle center to Z-axis guide-way mm 420

Table

Dimension mm 700 X 420

Max.

table load kg 250

T-slot (width*pitch*number) mm 14 X 125 X 3

Spindle

Spindle type - Direct type

Spindle speed rpm 20000

Spindle motor power (cont.

/30 min rated) kW 3.7/5.5

Spindle taper - BT30

Feed Rate

Rapid traverse(X/Y/Z) m/min 48 / 48 / 48

Cutting feed rate mm/min 1-10000

Motor power (X/Y/Z) kW 1.8 / 1.8 / 1.8

ATC

ATC type - Gripping type

Magazine capacity pcs 16

Max.

tool diameter (adjacent pocket empty) mm 80 / 120

Max.

tool length mm 200

Max.

tool weight kg 5

Tool shank - BT 30

Space & System Requirement

Pneumatic pressure kgf/cm² 6

Machine net weight kg 3300

Max.

floor space (WxLxH) mm 1800 X 2400 X 2300
