Small Cnc Wheel Lathe Ck6160q - China

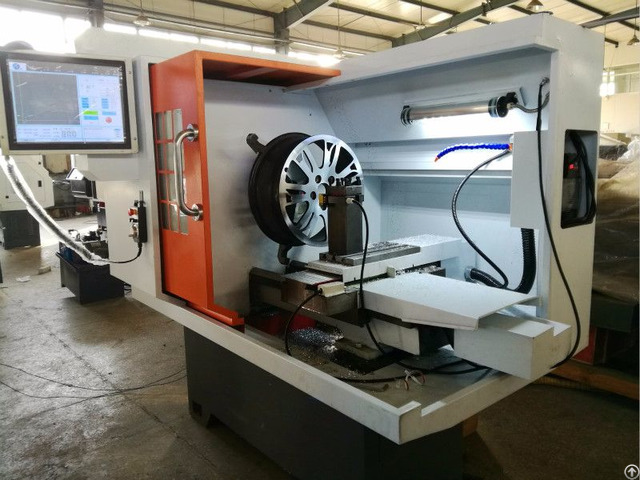

small cnc wheel lathe CK6160Q small cnc wheel lathe CK6160Q is specially engineered and fabricated wheel CNC machine by Haishu Machinery for alloy car wheel repair and maintenance in Car Repair Workshops.

Car Wheel CNC Machine CK6166Q is composed of self-made mechanical parts such as the cast bed, spindle, fixing chuck and the feeding mechanism, the imported numerical control system, the automatic measuring system, the famous brand servo motors and the auxiliary parts like lubrication, light and cooling.

CK6160Q Specifications Item Unit Specifications

Max Wheel Diameter inch 22″

X-axis maximum stroke mm 320

Main motor power kw 3

Rial Width mm 260

Max.

workpiece length mm 500

Wheel measuring direction X, Z

Measuring Tool Laser or probe (optional)

Measurement method Point measurement and quick scan Program optimization Manual and automatic Number of wheel processing programs rows 100000

CNC System “HAISHU” special system (touch screen operation, 17 “screen LCD display).

Universal CNC system (key operation, 10.4 “screen LCD display) (optional) Wheel processing Surface, rim

Mchining accuracy um IT6~IT7

Main drive form Frequency control, servo drive (optional)

Spindle speed Factory setting 150~2800

Fast-moving feed mm/min X : 5000 Z : 8000

Repeat accuracy mm X : 0.01 Z : 0.015

Turret form Fixed turret, Electric turret (optional)

Section of turning tool mm 25×25

Machine size(L×W×H) mm 190×1400×1750

Net weight kg 1300 small cnc wheel lathe CK6160Q Features 1 - The wheel lathe has the advantages of simple structure, low cost and high performance price ratio.

2 - The machine tool can be selected by laser scanning or probe click measurement.

3 - Wheel data is automatically stored, machining program is arbitrarily called out.

4 - Software independent development, program automatically optimize 5 - Wheel processing is automatic precise and fast 6 - The machine tool is operated by touch screen, and the system interface supports many languages.

7 - X / Z axis measurement, wheel surface and circumferential machining.

8 - The wheel machine is equipped with an automatic lubrication system.

9 - The lathe with diamond tool turning, make wheel surface more smooth.

10 - The wheel repair lathe has the teaching function of the computer.

11 - The machine can be customized according to customer requirements.

About Haishu Machinery Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying automobile wheel production and repair solutions to worldwide customers.

We have been always worked hard to become the leader in designing and manufacturing CNC lathes since 2001 - We have more than 30 talented experts and more than 12, 000 square meters factory.

Sticking on the product development ideas of innovation, simpleness, high quality and high efficiency, we had been always focused on CNC software development, structural design, process planning, manufacturing deployment and quality control since the foundation in 2001 - Our innovative, high-quality products include wheel CNC machine, wheel repair machine, brake drum lathe and customized CNC machine, alloy wheel cnc lathe, wheel straightening machine, alloy wheel lathe machine, alloy wheel polishing machine, rim straightening machine, brake disc lathe and other customized CNC machines.

Our customers are from Germany, Russia, Spain, India, South Korea, Malaysia, Singapore, Saudi Arabia, South Africa, Iran, Indonesia, Turkey, Jordan, Dubai, Poland, Morocco, Mexico, Brazil, Lebanon, Thailand, Kazakhstan, Bangladesh, HK, Taiwan and so on.

We are looking for partners all over the world.
