Metal Lathe Ck6132a - China

price: contact company for price

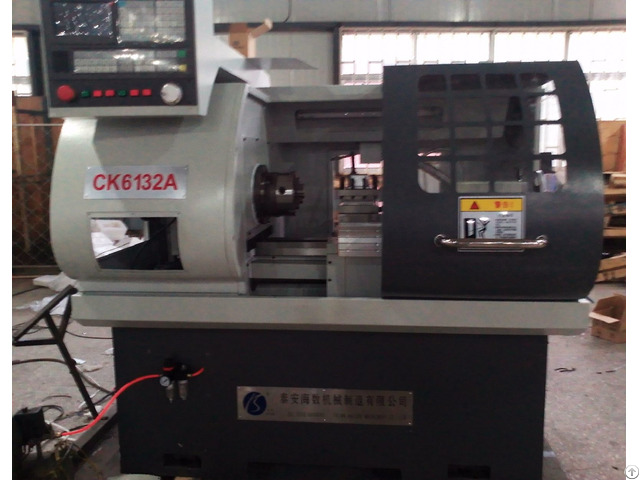

Metal Lathe Ck6132a

Products Photos Catalog Metal Lathe Ck6132a Photos Catalog

metal lathe CK6132A Item

Project name

Technical paramaters

CK6132A

technical specifications

Max.

swiming over the bed dia.

(mm)

Φ320

Max.

swiming over pallet(mm)

Φ140

Max.

the workpiece length(mm)

450 Main transmission

Main transmission form

Independent spindle, stepless frequency conversion timing

Number of spindle speeds

stepless

Range of spindle speed(r/min)

100~2000

Spindle centering axial taper

MT5 Spindle bore(mm)

42mm

Chuck size(mm)

160mm

Main motor power(kw)

3kw Feed system

Turret maximum stroke(mm)

X - axis: 260 Z - axis: 450

Fast-moving feed(mm/min)

X - axis: 6000 Z - axis: 8000 Workpiece accuracy

IT6-IT7

Workpiece surface roughness

Ra1.6 tailstock

Dia.

of tailstock quill(mm)

Φ60

Tailstock quill stroke(mm)

100

Taper of tailstock quill

MT4 Tool post

Standard accessories

4 electric tool post

Opinional accessories

gang-type tool camier

Repeat positioning accuracy(mm)

0.008

Section of turning tool(mm)

16*16 Size and weight

The size of the machine

(length*width*height)( mm)

1815*1165*1800

Net weight of the machine(kg)

1200


Company Contact:


  • Phone: +8613562857553

  • Address: Shankou town, Taian , Shandong , China

  • Email: Email


Published date: July 2, 2018

  • Business Description: Taian Haishu Machinery CO., LTD was found ed in 2001, mainly produce cnc lathe, cn c machine centers, all through CE.
