Horizontal Machine Tool Ck6432 - China
price: 9000.00 Dollar US$
horizontal machine tool ck6432 cnc tornos metal mini cnc lathe machine Item
Project name
Technical paramaters
CK6432A
technical specifications
Max.
swiming over the bed dia.
(mm)
Φ360
Max.
swiming over pallet(mm)
Φ150
Max.
the workpiece length(mm)
450 Main transmission
Main transmission form
Independent spindle, stepless frequency conversion timing
Number of spindle speeds
stepless
Range of spindle speed(r/min)
100~2500
Spindle centering axial taper
MT6
Spindle bore(mm)
60mm
Chuck size(mm)
200mm
Main motor power(kw)
4kw Feed system
Turret maximum stroke(mm)
X - axis: 260 Z - axis: 750
Fast-moving feed(mm/min)
X - axis: 6000 Z - axis: 8000
Repeat positioning accuracy(mm)
X - axis: 0.01 Z - axis: 0.015
Workpiece accuracy
IT6-IT7
Workpiece surface roughness
Ra1.6 tailstock
Dia.
of tailstock quill(mm)
Φ60
Tailstock quill stroke(mm)
100
Taper of tailstock quill
MT4 Tool post
Standard accessories
4 electric tool post
Opinional accessories
gang-type tool carrier or 6 tool post Repeat positioning accuracy(mm)
0.008
Section of turning tool(mm)
20*20 Size and weight
The size of the machine
(length*width*height)( mm)
1815*1165*1800
Net weight of the machine(kg)
1450 Economic configuration manual 3 jaw chuck; 4 station tool post; auto micro computer controlled lubrication; water cooling;lighten system

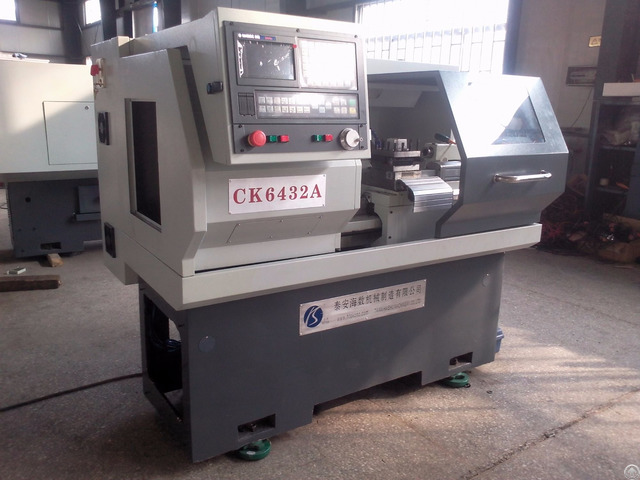

Low price ck6432 cheap cnc machine picture
Company Contact:
- Posted By: Taian Haishu Machinery CO.,LTD
- Phone: +8613562857553
- Address: Shankou town, Taian , Shandong , China
- Email:
- Website: https://www.wheelcncmachine.com
Published date: July 2, 2018
- Business Description: Taian Haishu Machinery CO., LTD was found ed in 2001, mainly produce cnc lathe, cn c machine centers, all through CE.
