High Production Efficiency Double Sided Flat Polishing Tube Machine - China

Suitable for double-sided circular tube polishing, double-sided flat polishing, PLC man-machine interface control, high production efficiency

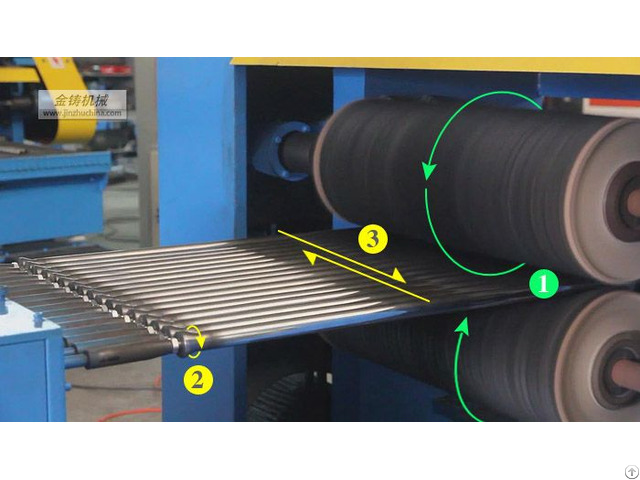

1 - Polishing wheel rotation: after starting the equipment, the polishing wheel rotates inward respectively, and the rotation speed can be adjusted by frequency converter 2 - fixtures and products: fixtures drive round pipe products to rotate, and the table is pushed before and after polishing the round pipe.

3 - table swing: the table in the operation of the equipment in the process of swing, to ensure that the product polishing is more uniform.

Application

The round tube (diameter 10-35mm and length less than 1000mm) fixture drives the round tube to rotate 360 degrees for polishing treatment Square tube (diameter 10-35mm length less than 1000mm) 1, the upper and lower polishing wheel to polish the upper and lower front.

2, the fixture rotates 90 degrees on the left and right sides of the polishing treatment Machine Feature：

1, The machine PLC, man-machine interface control, high production efficiency, the workpiece after processing the surface effect is good.

The introduction of German technology design, is the domestic top direct thrower.

2 - The polishing wheel of the equipment can be compensated by itself, the belt is tensioning, and the patented technology is used for eccentric adjustment, without moving the core motor.

3 - The machine head of the core polishing machine adopts cylinder position, slider lifting, and the core spindle is inlaid with patented nylon sleeve, which has good double shockproof effect.

4, Polishing wheel adopts straight polishing, can maximize the removal of the primary sand shading product force balance, not easy to change shape.

6, The equipment worktable has a quick clamping attachment, which can realize fast clamping of all products within 6 seconds.

7 - The machine can add automatic wax spraying device according to customer needs, saving working procedure and reducing processing and production cost.

8 - The whole machine equipment is specially reserved for dust removal port docking design, which can be seamlessly connected with the green exhaust dust removal system of the enterprise.
