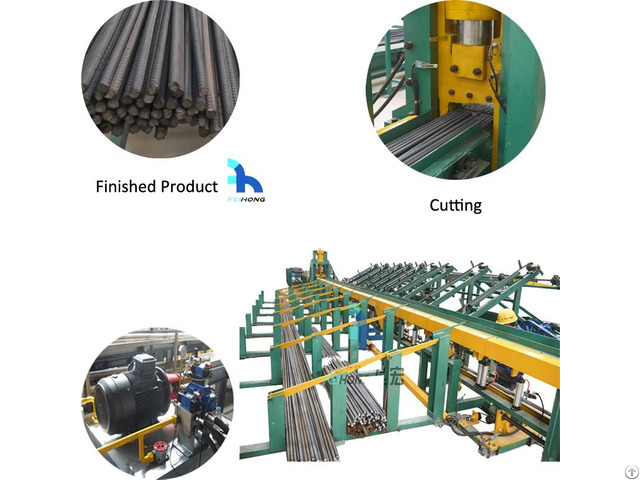

High Performance Hydraulic Shearline Rebar Cutting Machine - China

Features of the high performance hydraulic shearline rebar cutting machine 1 - Adopting hydraulic shearing, small volume, high cutting force and high output, low noise, long service life and stable operation, etc.

2 - Adopting import seal to the hydraulic cylinder, it is greatly increased service life.

3 - Our hydraulic system only needs 15Mpa to cut the steel bars ofφ25 - 4 - The moving blade is innovation design of oblique edge.

The slop is about 3 ° larger than other brand products in the industry.

5 - Rebar fixed-length mechanism adopts servo motor control, adjusting the distance between the shear blade and positioning baffle through Servo motor drive screw mechanism.

6 - The track adopts moving track, which is more precise and small spring back during the rebar process compares to the mobile baffle scheme.

7 - Chain feed mechanism, without slip and high efficiency.

8 - Shearing efficiency: 10 hours a day shearing 50 ton, and a shearing process needs about 1 minute.

Technical Parameter of the high performance hydraulic shearline rebar cutting machine (Note: as your reqested size, we can customize for you.

) NO Model FHS-32 1 Rebar Diameter range 12-40mm 2 Max cut power 120Kn 3 Effective shearing width 250mm 4 Shear frequency 20times/min 5 Rebar convey speed 1.92m/s 6 Shear length 1-12m 7 Shear error ±2mm 8 Min Manual shear size 10mm 9 Min auto shear size 700mm 10 Min auto convey size 1000mm 11 Rebar stock bin 4pcs 12 Processing capability 40mm 1 bar--12mm 15 bar 13 Total power 25.5KW 14 Work temperature -10-50℃ 15 Weight 9000 kg 16 Working voltage 380V 17 Working air pressure 0.7MPa 18 Hydraulic system max pressure 31.5Mpa 29 Overall dimension 28m(L)×3.3m(W)×2.5m(H)
