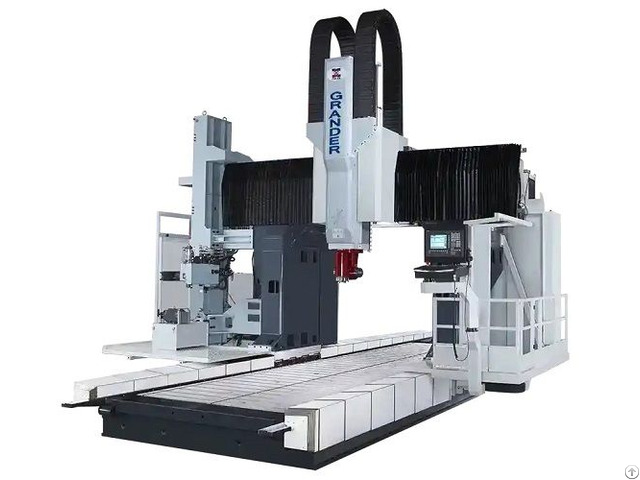

Grander 5 Face Moving Column Type Machining Center - Taiwan

Model: GRANDER 5MG Series

C-axis rotation angle ± 190˚ and minimum movement unit 0.001˚

The spindle head adopts dual spindle (vertical and horizontal) design and 45˚ universal head design, which can save time in replacing the head.

Provide 2+3 axes for five-sided milling Description

As a leading manufacturer, we specialize in designing and manufacturing high-quality moving column solutions.

Our commitment to precision and innovation is evident in every aspect of our machines, from the structural design to the advanced technology incorporated.

1 - The Italian original factory participates in the entire design and manufacturing process of this model, and its mechanical structure and design technology are stable and mature.

2 - This model has been marketed in Europe for more than ten years and has been recognized and appreciated by the majority of users.

3 - The machine adopts modular design and can be equipped with various five-face heads or five-axis heads.

It is suitable for complex body processing needs such as aerospace, rail, automobile and locomotive sheet metal molds, aerospace parts, green energy industry, LCD panel molds, and shipbuilding industry.

4 - Built-in high-torque and powerful spindle provides a wide range of applications, including rough milling, semi-finish milling and fine milling.

5 - C-axis rotation angle ± 190˚ and minimum movement unit 0.001˚

6 - The spindle head adopts dual spindle (vertical and horizontal) design and 45˚ universal head design, which can save time in replacing the head.

7 - Provide 2+3 axes for five-sided milling

8 - All moving axes adopt a fully closed-loop optical scale feedback system.

9 - There is no need to configure an automatic switching device, saving maintenance and reducing the failure rate.

10 - It can be configured into dual work areas, one of which can work and the other can load and unload workpieces, saving time and improving efficiency.

Company Contact:

• Posted By: Chi Fa Machinery Manufacturer Co., Ltd.

• Phone: 886-4-25628747

• Address: No.44-8, Ming-Chuan Rd., Sheng-Kang Dist.,, Taichung City, Taiwan

• Email:

• Website: https://www.twinhorn.com

• Business Description: Chi-Fa Machinery was established in 1976, originated as a knee-type milling machine parts processing factory.

  From 1976 to 1992, the company gradually transformed from a processing facility into an OEM assembly provider, achieving a remarkable record of assembling 1,800 units per month—a feat still unsurpassed in Taiwan.

  Since 1992, Chi Fa has embarked on producing vertical machining centers under its own brand, steadily developing and expanding its product line to include high-end horizontal machining centers and five-axis machining centers through international collaborations with Japanese engine maker Yasunaga and Italian 5-ax machine maker PFG.

  Between 2011 and 2013, Chi-Fa proudly held the top sales position in the drilling and milling machine industry, with a monthly output of approximately 250 units, supplying prominent companies like Green Point and HiP, as well as various upstream and downstream manufacturers of mobile phone casings and other accessories.
