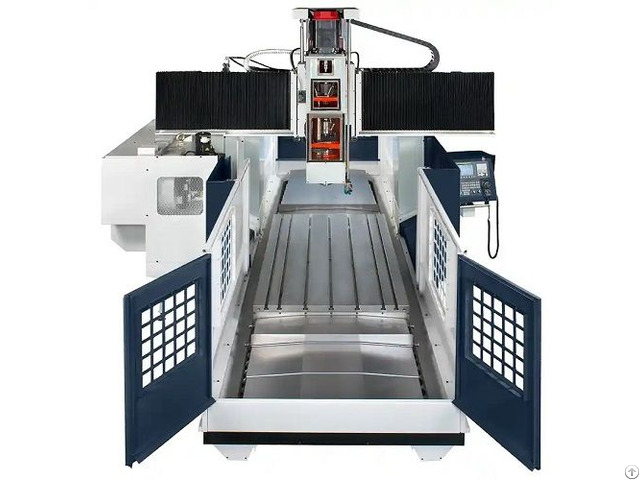

Fg Series Double Column Machining Center - Taiwan

Model: DBC 1500mm

To produce a high rigid machine tool, it needs to start from rigorous requirement of a small screw.

With over 30 years of design and manufacturing experience, Chi-Fa's FG series double column machining center has been developed and manufactured in-house throughout the entire machine.

Only with this way, we can fully understand how to optimize combination and running for the thousands of parts on a large machine tool, that also allow us to build the optimum machine structure.

Description:

As a trusted double column machining center taiwan, we specialize in designing and manufacturing high-precision solutions for various machining needs.

Our commitment to quality and innovation is reflected in every aspect of our machines, from the structural design to the materials used.

Z-axis is a box way design and sliding surfaces are precisely scraped to ensure the service life of the slide ways.

The box ways and the ram are one-piece fabricated to achieve no clearance between the slideways and the saddle.

This feature is normally requested by a high end machine.

Class C3 Ball Screws on Three Axes: Ball screws have been pre-tensioned to ensure machining accuracy under heavy loading condition for a long time.

Table, Spindle Head & Saddle: Manufactured from high quality Meehanite cast iron, they feature ultra high rigidity, excellent absorbing capacity and wear-resistance.

Base, Beam & Column: These structural parts are manufactured with multi-walls with internal rib, welded by high strength steel plates with tempered and stress-elieved.

With the meticulous design, various structural parts will provide the best possible vibration absorbing performance and rigidity.
