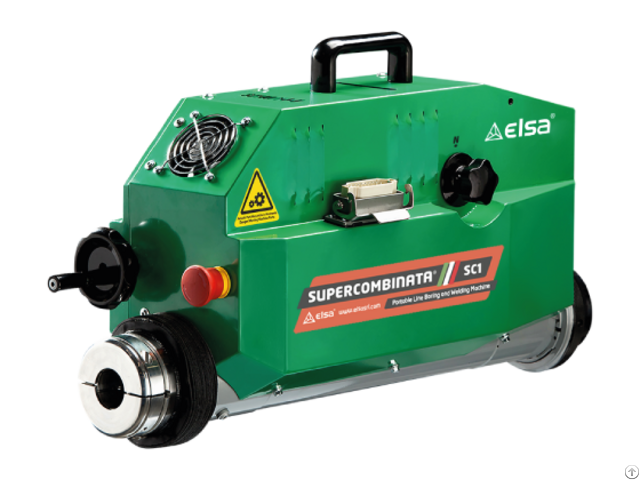

Elsa Supercombinata Sc1 - Italy

The Supercombinata SC1, thanks to its standard equipment, is suitable to perform internal line boring and internal and external overlay welding within a working range from Ø 42 mm to Ø 400 mm.

It’s suitable for drilling and tapping.

By means of extra kits, it is suitable to perform external line boring, facing of orthogonal planes and creation of circlips grooves, threading.

With additional accessories, the Supercombinata can be adapted to many different needs of our customers.

DIAMETERS Boring bar diameter: ø 40 x 2200 mm In line boring: ø 42 - 400 mm External Line Boring: Extra kit Internal welding: ø 42 – 400 mm External welding: ø 42 – 400 mm Drilling: Suitable Tapping: Suitable Threading: Extra kit Facing of orthogonal planes: Extra kit ROTATION MOTOR AC motor: Single phase Power at rated speed: 1800 W Gearbox: 4-speed Output torque at the bar: Up to 400 Nm with 95 rpm FEED MOTOR Gear motor: DC Power at rated speed: 90 W Max Speed: 11 rpm Feed system: Electromechanical Feed: Manual/Automatic WELDING TECHNOLOGY Spiral: Continuous with variable step Welding machine: Compatible with MIG/MAG welder with EURO connector LONGITUDINAL STROKE Unlimited: With 350 mm pitch ELECTRONIC CONTROL PANEL Voltage: 220/240 V (50/60 Hz) Main switch: Available Emergency switch: Available Inverter feed: RH/LH Inverter rotation: CW/CCW Speed regulator: Rotation/Feed Electrical absorption: 2000 W Control panel 110/120 V: Upon request Digital control panel: Upon request DIMENSIONS Length: 680 mm Width: 240 mm Height: 380 mm Weight central unit: 36 Kg STANDARD EQUIPMENT Qty 1 - Main unit Qty 1 - Boring machine stand Qty 1 - Electronic control panel Qty 1 - Control panel holder Qty 1 - Cable control panel/machine Qty 1 - Power cable 220 V Qty 1 - Boring bar ø 40x2200 mm Qty 1 - Boring bar ø 40x1100 mm Qty 1 - Boring bar extension 520 mm Qty 1 - Pivot Qty 1 - Tool holder for boring d.

100-400 mm Qty 1 - Special tool holder LH ø 12x40 mm Qty 1 - Tool holder LH ø 12x40 mm Qty 1 - Tool holder LH ø 12x60 mm Qty 1 - Tool holder RH ø 12x100 mm Qty 1 - Box with 10 cutting inserts Qty 2 - Main bar support Qty 2 - Additional support Qty 12 - Bracket for flanges Qty 1 - Telescopic shaft for welding Qty 5 - Diffusor extension 35 mm Qty 1 - Diffusor extension 100 mm Qty 4 - Short gas nozzle Qty 4 - Long gas nozzle Qty 5 - Short contact tip ø 0, 8 mm wire Qty 5 - Long contact tip ø 0, 8 mm wire Qty 1 - O-ring for welding shaft 100x5 mm Qty 1 - Terminal lance for external welding Qty 1 - Centring system for through holes Qty 1 - Centring system for blind holes Qty 1 - Telescopic gauge up to ø 400 mm Qty 1 - Dial gauge Qty 1 - Dial gauge support Qty 1 - Set of wrenches Qty 1 - Screws and bolts EXTRA KITS BORING REDUCTION KEP00187 Ø 22 - 44 mm (0, 87” - 1, 73”) KEP00188 Ø 32 - 70 mm (1, 26” - 2, 76”) FACING KES00186 Ø 48 - 255 mm (1, 89” - 10, 04”) KES00200 Ø 56 - 400 mm (2, 20” - 15, 75”) INTERNAL THREADING KFL00928 Ø 120 - 350 mm (4, 72” - 13, 78”) OD MACHINING KEL00202 Ø 100 - 200 mm - D.

200 mm (3, 94” - 7, 88”) KEL00203 Ø 150 - 300 mm - D.

300 mm (5, 90” - 11, 81”) BIG DIAMETERS KED00180 Ø 400 - 600 mm (15, 75” - 23, 62”)

Company Contact:

• Posted By: Elsa Srl

• Phone: +390961962854

• Address: Località La Petrizia S.S. 106, Sellia Marina , Catanzaro , Italy

• Email:

• Website: https://elsasrl.com/

• Business Description: For more than 25 years, we have been a leader in the manufacture and marketing of automatic Portable Machine Tools, for internal and external line boring and overlay welding, facing of orthogonal planes, creation of seats for seeger rings, threading, drilling and tapping.

  We are a family run business established in the 90s with a long and successful history, which has grown worldwide: today 97% of our production is destined for export.

  Elsa is a world-renowned brand which stands for reliability and excellent quality.

  We strive to always meet our customers needs, working in close collaboration with them.

  Strong customer focus and product reliability has laid the foundations for the unrivaled success of the Supercombinata series.
