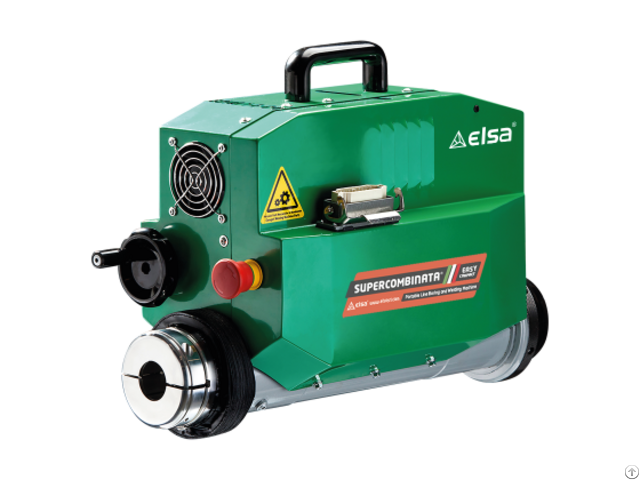

Elsa Supercombinata Easy Compact - Italy

The Supercombinata EASY Compact, thanks to its standard equipment, is suitable to perform internal line boring and internal overlay welding within a working range from Ø 42 mm to Ø 250 mm in very small spaces.

By means of extra kits it is able to perform external line boring, facing of orthogonal planes and creation of circlips grooves.

With additional accessories, the Supercombinata can be adapted to many different needs of our customers.

DIAMETERS Boring bar diameter: ø 40 mm x 2200 mm In line boring: ø 42 – 250 mm External line boring: Extra kit Internal welding: ø 42 – 250 mm Facing of orthogonal planes: Extra kit ROTATION MOTOR AC motor: Single phase Power at rated speed: 1800 W Output torque at the bar: 290 Nm with 120 rpm 1° speed: max 100 rpm (170 Nm) 2° speed: max 340 rpm (50 Nm) FEED MOTOR Gear motor: DC Power at rated speed: 90 W Max speed: 11 rpm Feed system: Electromechanical Feed: Manual/Automatic WELDING TECHNOLOGY Spiral: Continous with variable step Welding machine: Compatible with MIG/MAG wire with EURO connector LONGITUDINAL STROKE Unlimited: With 250 mm pitch ELECTRONIC CONTROL PANEL Voltage: 220/240 V (50/60 Hz) Main switch: Available Emergency switch: Available Inverter feed: RH/LH Inverter rotation: CW/CCW Speed regulator: Rotation/Feed Electrical absorption: 2000 W Control panel 110/120 V: Upon request DIMENSIONS Length: 545 mm Width: 220 mm Height: 380 mm Weight central unit: 34 Kg STANDARD EQUIPMENT Qty 1 - Main unit Qty 1 - Boring machine stand Qty 1 - Electronical control panel Qty 1 - Control panel holder Qty 1 - Cable control panel /machine Qty 1 - Power cable 220 V Qty 1 - Boring bar ø 40x2200 mm Qty 1 - Boring bar extension 420 mm Qty 1 - Pivot Qty 1 - Tool holder for boring d.

100-250 mm Qty 1 - Special tool holder LH ø 12x40 mm Qty 1 - Tool holder LH ø 12x40 mm Qty 1 - Tool holder LH ø 12x60 mm Qty 1 - Tool holder right RH ø 12x100 mm Qty 1 - Box with 10 cutting inserts Qty 2 - Main bar support Qty 2 - Additional support Qty 1 - Telescopic shaft for welding Qty 5 - Diffusor extension 35 mm Qty 4 - Short gas nozzle Qty 4 - Long gas nozzle Qty 5 - Short contact tip ø 0.8 mm wire Qty 5 - Long contact tip ø 0.8 mm wire Qty 1 - O-ring for welding shaft 100x5 mm Qty 1 - Centring system for through holes Qty 1 - Telescopic gauge up to ø 250 mm Qty 1 - Dial gauge Qty 1 - Dial gauge support Qty 1 - Set of wrenches Qty 1 - Screws and bolts EXTRA KITS BORING REDUCTION KEP00187 Ø 22 - 44 mm (0, 87” - 1, 73”) KEP00188 Ø 32 - 70 mm (1, 26” - 2, 76”) FACING KES00186 Ø 48 - 255 mm (1, 89” - 10, 04”) OD MACHINING KEL00202 Ø 100 - 200 mm - D.

200 mm (3, 94” - 7, 88”)

Company Contact:

• Posted By: Elsa Srl

• Phone: +390961962854

• Address: Località La Petrizia S.S. 106, Sellia Marina , Catanzaro , Italy

• Email:

• Website: https://elsasrl.com/

• Business Description: For more than 25 years, we have been a leader in the manufacture and marketing of automatic Portable Machine Tools, for internal and external line boring and overlay welding, facing of orthogonal planes, creation of seats for seeger rings, threading, drilling and tapping.

  We are a family run business established in the 90s with a long and successful history, which has grown worldwide: today 97% of our production is destined for export.

  Elsa is a world-renowned brand which stands for reliability and excellent quality.

  We strive to always meet our customers needs, working in close collaboration with them.

  Strong customer focus and product reliability has laid the foundations for the unrivaled success of the Supercombinata series.
