Die Casting Mold Factory - China

Aluminum Die Cast Mold Accessories diecast custom parts die casting mold factory china die cast dies Aluminum Die Cast Mold Accessories

Die cast mold ejector pin.

Material DIN 1.2344, AISI H13, JIS SKD61, ASSAB8407

Ejector pin with a cylindrical head

Shouldered ejector pin

Flat ejector pin

Forming ejector pin

SKD61 and AISI H13 is popularly in aluminum die casting molds manufactory

SKD61 inner hardness: HRC48-52, surface hardness: HV900-1100, heat treatment:

Vacuumed + nitride

H13 inner hardness: HRC 48-52, surface hardness: HV900-1100, heat Guide pillar and guide bush

Square Guide Pillar

Ejector Guide Pillar

Headed Guide Pillar

Shouldered Guide Pillar

Ejector Guide Bush

Straight Guide Bush

Headed Guide Bush

Guide Plate HASCO DME FUTABA standard

Roughness Ra0.6-0.8, tolerances below 0.001mm, roundness: 0.002mm, concentricity: within0.002mm

Mold base company like LKM, D-M-E, FUTABA hade branch company in Ningbo.

S50C is important material for aluminum die casting mold base, QT550 and QT600 was popularly material for die casting mold base in twenty years before.

Since customer increasing high quality aluminum die casting mold require, the material of S50C, DIN 1.1213, AISI 5AE 1050, NF C50 is welcomed in Ningbo die casting market

Clamping plate of the fixed half

Clamping plate of the moving half

Bolster of the fixed half

Bolster of the moving half

Support pillar, space block, support plat

Company Contact:

• Posted By: Ningo Goal Sure Machining Co. ,Ltd

• Phone: 86057483017530

• Address: Dong Qiao Zhen Bai Liang Qiao Cun, Haishu District, Ningbo , Anhui Sheng, China

• Email:

• Website: https://www.gsdiecasting.com/

• Business Description: Ningo goal sure machining co.

  ,ltd was founded in 2001, located aluminum die casting mold hometown Ningbo.

  Year 2007 company total investment 50million yuan, on 30 acre land build up 2000 square meters pressure die casting mold workshop, 3500 square meters pressure aluminum casting products workshop, 600 square meters aluminum die casting tools accessories workshop.

  The factory has more than 20 senior technical staff engaged in pressure aluminum die casting industry many years.

  we use most advanced simulation software of JSCAST for precision high pressure die casting tooling, strong technical support for your new die casting parts design.

  Report including temperature field analysis, solidification analysis, velocity analysis.

  Facility including cold chamber die casting machines from 280T-1600T.

  all of our die casting machines equipped with automatic assistances, feeding manipulator, spraying manipulator, fetching manipulator, model constant temperature control system.

  400T die spotting machine.

  CNC precision mold engraving machines, deep hole drilling, five axle high speeding machining center, slow feeding machines, Testing machines including CMM, tensile testing machine, x-ray machine, metallographic analyzer.

  Company of LKM, ASSAB, UDDEHOLM, LK, BOHLER hade branch company not far away from us, this is great advantage for us to purchase high quality stand steel for our aluminum die casting molds, and high quality raw material for our custom die casting parts.

  The standard pressure die casting molds base from LK is precision and durable.

  We offer die casting mold design and technical support for potential customer.

  our main business is custom die casting parts service and custom die casting tools service.

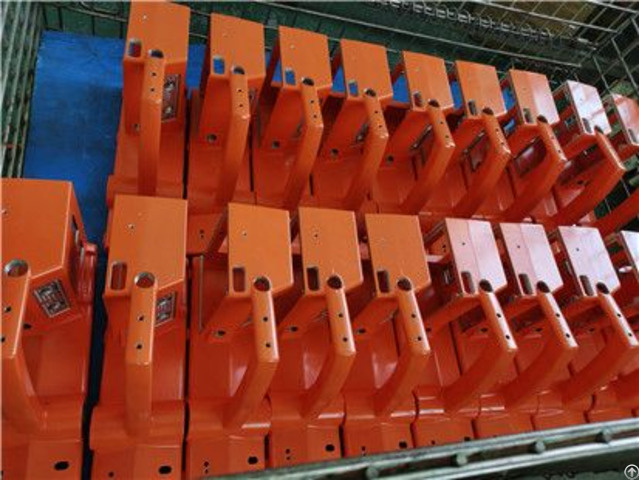

  Main products including oil pan die casting mold, aluminum die casting housing for auto clutch, auto engine block, aluminum alloy shift fork, aluminum die cast sofa leg, aluminum die casting TV bracket, corrosion resistant light fixtures, casting bathroom light fixtures……
