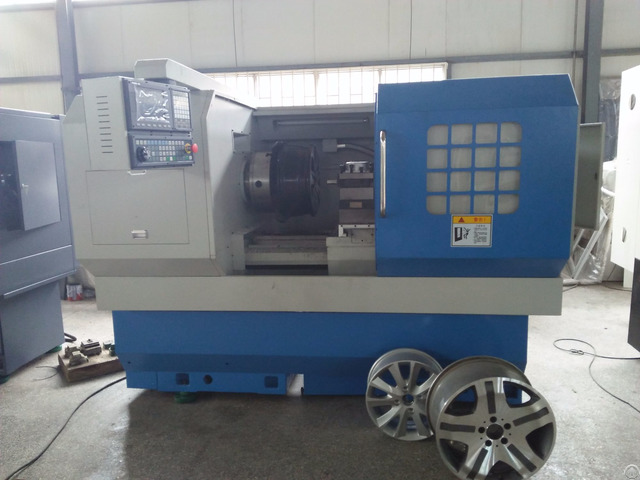

Diamond Cut Wheels Machines Ck6166a Cnc Wheel Repair Lathe - China
price: 14500.00 Dollar US$
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Max.
Swing Diameter:
660mm
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HAISHU
Voltage:
380v
Power(W):
7.5KW
Dimension(L*W*H):
2300x1750x1780(mm)
Weight:
3000KG
Certification:
ISO9001: 2008, CE
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
diamond cut wheel machines CK6166A cnc wheel repair lathe
Max.
measured depth of the probe:
100mm
Max.
machining depth of the tool:
100mm
Range of spindle speed:
150-2000rpm
Fast-moving feed mm/min:
X - axis: 5000 Z - axis: 8000
Repeat positioning accuracy mm:
X - axis: 0.01 Z - axis: 0.015
Standard accessories:
4 station electric tool
Repeat positioning accuracy(mm):
0.008
Section of turning tool(mm):
25x25 diamond cut wheel machines CK6166A cnc wheel repair lathe Main features
1 - Achieve the wheel surface profile measurement and data collection and Program Optimization, 2 - Automatic precision repair and machining in accordance with the curve of the wheel surface
3 - Spindle frequency stepless speed;
4 - X / Z axis servo drive;
5 - Manual jaw self-centering chuck;
6 - Machine guard full protection;
7 - Automatic oil lubrication.
diamond cut wheel machines CK6166A cnc wheel repair lathe Uses
1 - The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
2 - The machine tool has also the function of the general CNC lathes .
“HAISHU”
wheel repair curve optimization software features
1 - The software has two-way curve optimization features of the X and Z direction, can achieve the curve optimization of the wheel face and circumference (rim) surfaces.
2 - According to the wheel CAD drawings, modified the curves be generated by collection points of the wheel surface.
modify the curve of measurement acquisition point generating of wheel surface.
3 - According to the point of collection from the surface of the wheel, you can automatically generate a curve, you can also manually modify and optimize the curve.
4 - The software can display multiple languages, adapt to customers in different countries.
5 - The software is self-developed, design can be personalized according to customer requirements.
6 - The software requires no special installation, open to use, operation is very simple.
7 - The software enables to a self-set for safety distance of advance and retreat knife
Company Contact:
- Posted By: Taian Haishu Machinery CO.,LTD
- Phone: +8613562857553
- Address: Shankou town, Taian , Shandong , China
- Email:
- Website: https://www.wheelcncmachine.com
Published date: November 9, 2018
- Business Description: Taian Haishu Machinery CO., LTD was found ed in 2001, mainly produce cnc lathe, cn c machine centers, all through CE.
