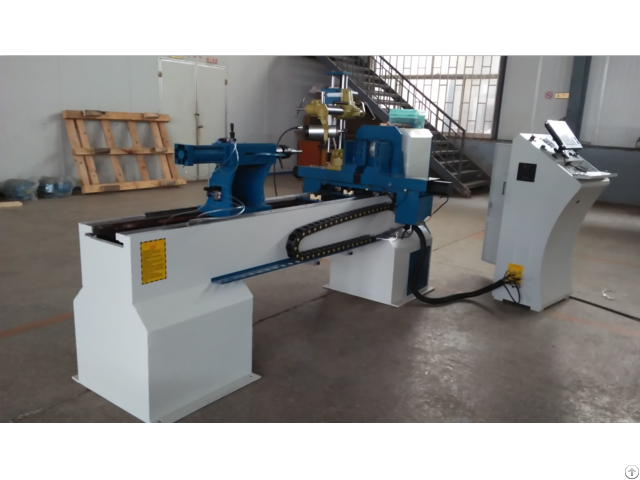

Cnc Wood Lathe Cnc1503sa - China

cnc wood lathe CNC1503SA is the 5 axis multi-functional CNC wood lathe that can finish urning, drilling, engraving and slot processing in one machine.

HAISHU Brand CNC wood turning lathe CNC1503SA and CNC2504S are widely used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children’ s bed column, etc.

Standard Configuration 12 inch color screen, built-in CNC computer

Imported linear guide, precision ball screw

The multi-function spindle and the control system can realize turning, engraving and slot carving

Universal gyration joint

Rotary center and knife frame (5CM~6CM wood square)

Pneumatic feeding, automatic centering

Pneumatic pressure pin

V type high speed steel tool

Easy to use software, basic pattern software Optional Configuration φ160 four claw linkage chuck

Special vacuum cleaner for woodworking

220V constant frequency conversion power spindle control

CNC Wood Turning Lathe Features 5 axises, can turn, drill, engrave and slot process the complex shape of the wood products

The control system adopts mature CNC controller, 12 inch color screen, standard NC language G code, many kinds of CAD software, technical support function expansion

Double position tool rack, rough and precision processing completed in one time

Precision ball screw, automatic forced lubrication

High precision linear guide rails

Variable frequency stepless speed spindle

Horizontal flat bed structure

Easy to program

Easy to operate and maintain
