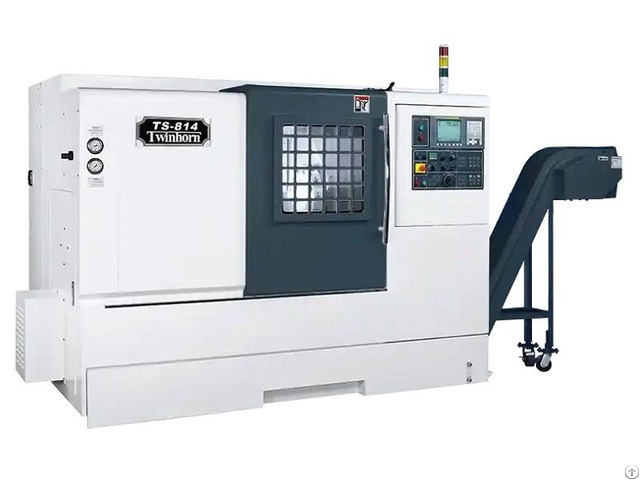

Cnc Turning Lathe Ts 814 - Taiwan

Model: TS-814

45 degree Slant bed single piece body designs provides best stability, vibration absorb capability and smooth chip collecting.

Enhanced triangular boxing body structure build with all Meehanite cast iron.

Heat-treated and precisely ground box way design on both X and Z-axis provide best cutting capability.

Description:

SUPER STRONG SPINDLE DESIGN

The rugged spindle housing with heat sink rib design provides best thermal control and mechanical balance with machine base.

SPINDLE PROFILE

The spindle is built with chromium-molybdenum alloy steel with hardness to HRC 58* and precisely ground.

Employs NNK high precision bearings with special bearing support design provides best rigidity and accuracy.

PRECISE SCRAPING

All slide way contact areas were cover with precisely scrapped TURCITE B plus automatic lubrication system to ensure longer machine accuracy.

PRECISE BALLSCREW SYSTEM

Both X and Z-axis equipped with pretensed C3 class high precision bali screw to ensure machine accuracy during operation.

Company Contact:

• Posted By: Chi Fa Machinery Manufacturer Co., Ltd.

• Phone: 886-4-25628747

• Address: No.44-8, Ming-Chuan Rd., Sheng-Kang Dist.,, Taichung City, Taiwan

• Email:

• Website: https://www.twinhorn.com/

• Business Description: Chi-Fa Machinery was established in 1976, originated as a knee-type milling machine parts processing factory.

  From 1976 to 1992, the company gradually transformed from a processing facility into an OEM assembly provider, achieving a remarkable record of assembling 1,800 units per month—a feat still unsurpassed in Taiwan.

  Since 1992, Chi Fa has embarked on producing vertical machining centers under its own brand, steadily developing and expanding its product line to include high-end horizontal machining centers and five-axis machining centers through international collaborations with Japanese engine maker Yasunaga and Italian 5-ax machine maker PFG.

  Between 2011 and 2013, Chi-Fa proudly held the top sales position in the drilling and milling machine industry, with a monthly output of approximately 250 units, supplying prominent companies like Green Point and HiP, as well as various upstream and downstream manufacturers of mobile phone casings and other accessories.
