Cnc Turning Lathe Machine Equipment Cjk6150 - China

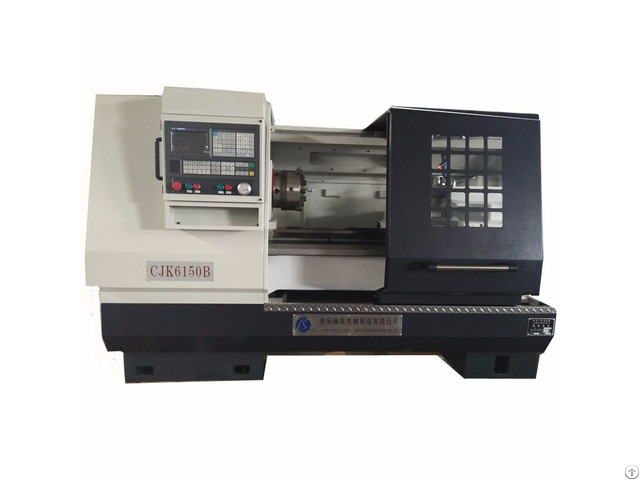

CNC Turning Lathe Machine Equipment CJK6150 is a universal horizontal CNC lathe.

In this metal CNC lathe, the spindle aperture is enlarged, and the wide guide rail can increase the stability of the CNC machine tool.

The bed body also adopts an integral structure in order to increase the rigidity.

Metal CNC lathe spindle adopts high speed bearings and is very suitable for processing non-ferrous metals such as copper, aluminum, stainless steel and so on.

The appearance has also been independently designed, very beautiful and generous.

The two guide rails of the metal CNC lathe adopt a double triangular structure, which can improve the machining accuracy and stability.

And it can also increase the processing speed.

It is the very cost-effective CNC lathe.

CNC Turning Lathe Machine Equipment CJK6150 Main features 1 - Spindle brake way by electric brake

2 - Feed of X.

Z shaft are driven bu all screw with servo-motor or stepper motor

3 - Rotary various workpiece surface automatically turning, precision maching

4 - The carriage adopts plastic paste processing.

wear small, high precision, long life.

5 - Electronic hand wheel equipped, easy operation.

6 - High efficiency, high precision CNC Turning Lathe Machine Equipment CJK6150 Standard configuration:

1 - CNC system: GSK928

2 - Manual chuck(250mm)

3 - Manual tailstock

4 - Vertical four-station electric turret

5 - Automatic lubrication system

6 - Turning the cooling system CNC Turning Lathe Machine Equipment CJK6150 Select configure:

1 - CNC system: GSK 980, KND, Siemens, Fanuc, etc

2 - Manual chuck(320mm)Hydraulic chuck(solid and hollow), pneumatic chuck

3 - Hydraulic tailstock, pneumatic tailstock

4 - Automatic feeder

5 - Horizontal six-station turret, eight-station turret, tool row CNC Turning Lathe Machine Equipment CJK6150 Specifications

Max swiming over the bed 500mm

Max swiming over pallet 300/290mm

Max the workpiece length 750/1000mm

Bed foot structure Overall bed foot/Separate bed foot

Lathe bed width 400/360mm

Main transmission form Independent spindle, Three gears

Speed mode Frequency stepless speed

Range of spindle speed 150-2000/36-1600r/min

The form of the spindle head 8-D/8-A2

Hole diameter of spindle 82/70mm

Spindle centering axial taper 1: 4

Spindle taper 1: 20

Chuck diameter 250(320)/250mm

Main motor power 7.5kw

Turret maximum stroke X: 320/300mm Z: 760/1020mm

Fast-moving feed X: 6000mm/min Z: 8000mm/min

Repeat posetioning accuracy X: 0.01mm Z: 0.015

Workpiece accuracy IT6-IT7

Workpiece surface roughness Ra1.6

Diameter of tailstock quill 75/70mm

Tailstock quill stroke 180/120mm

Taper of tailstock quill MT5

Repeat positioning accuracy 0.008mm

Section of turning tool 25mmx25mm

The size of the machine 2650/3200x1600x1700/2300/ 2600x1500x1600(LxWxH)

Net weight of the machine 3200/3500
