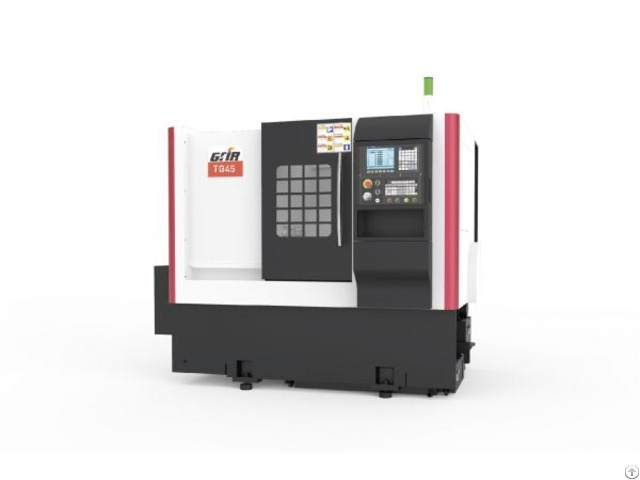

Cnc Slant Bed Lathe - China

Machine Feature 1 - Adopt the overall inclined bed base of 45° structure, the bed has a large cross-sectional area, which greatly improves the rigidity of the whole machine.

360mm X-axis/Z-axis travel can provide more space for tool installation.

The large span of the guide rail makes the cutting process more stable.

The rotation diameter of up to Φ400 makes the special-shaped parts and compound processing more convenient; 2 - Mechatronic design, large stroke, small volume, compact structure, elegant appearance; 　

　　　

3 - Optional eight-station rotary turret, ER20 single-axis power head, self-made dual-axis ER20 lifting power head and square power head can be used to complete the process of turning, milling, drilling, tapping and polygon cutting at a time; 4 - The structure of the spindle is the front three rear two angle contact bearing, the diameter of the through hole is Φ43; 5 - The vertical and horizontal driving adopts high-performance AC servo motor, X-direction ball screw adopts pre-stretch structure design, adopts C3 level accuracy, high positioning accuracy, flexible and reliable action; 6 - Adopt automatic centralized lubrication device, the lubrication is fully reliable; 7 - The cooling and chip removal system uses a floor-separated water tank and an iron chip box (the side and rear chip removal devices can also be selected), which is convenient for cleaning.

Company Contact:

• Posted By: U-Bright International  Co.,Ltd

• Phone: 0086-15951754303

• Address: No.15 Fengji Rode, Nanjing , Jiangsu , China

• Email:

• Website: https://www.onestop-solution.com

• Business Description: UBRIGHT Mechatronic Technology (Nanjing) Co.

  Ltd is located in Nanjing (Capital of Jiangsu Province) which is around 1 hours distance to Shanghai by train.

  We are the professional workshop machinery supplier for more than 10 years.

  We supply various workshop machineries, like the CNC VMC, CNC Lathe, CNC Gantry Machining Center, metal sheet working machine, pipe working machine etc.

  In the meanwhile, we have been also supplied the turn-key project for some fields, like auto parts, hand tools etc.

  In order to make sure the running successfully at customer site, we pay most attention on machine quality, each machine will be inspected by our engineer and also do the machine commissioning with workpiece or drawings.

  In the meanwhile, we also set up the overseas branch in some countries, there are experienced sales manager and service engineers for better local services.

  We insist on “First Quality, First Trust, and First Service” as our business philosophy, which is the basis of long-term growth.

  We look forward the win-win cooperation with our customers.
