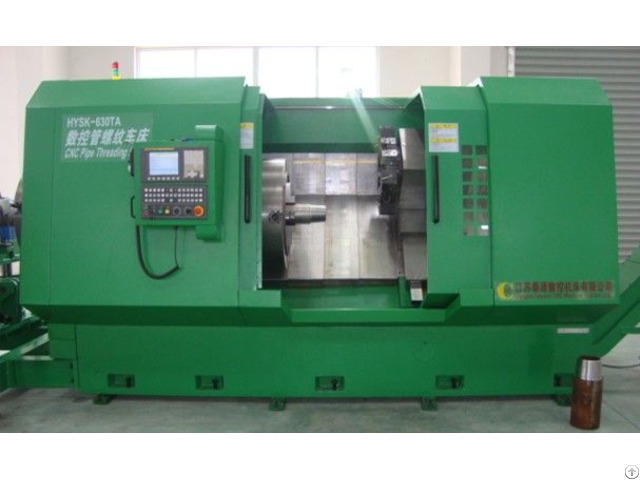

Cnc Pipe Threading Lathe Machine For Drill Collar - China

This machine is special for threading drill collar.

It has the advantage of high

accuracy, high rigidity, big power etc.

Machine bed is 45°slant.

The guide way is steel inlaid

guideway.

Use 8-station electric turret for outside screw, dual immovable tool rest and compound tool bar for inside screw, tool setting is convenient.

Spindle is high accuracy, high rigidity, can assure drill collar thread quality.

It has automatic lubricating and oil way fault alarm

function.

Equipped with big power centrifugal cooling pump, prolong the cutter life.

The machine is

full closed covering, good water proof.

With auto pipe loading/unloading device, work efficiency is highly

improved.

Items Unit HY—338F HYSK-630TA

Max.

swing diameter over bed mm φ880 φ800 Chuck diameter mm φ630 φ780

Max.

holding diameter mm φ245 φ310

The range of machining diameter mm 90～245 90～310

The range of machining length mm 600 600

Max.

swing diameter over saddle mm φ320 φ350

Spindle bore diameter mm φ255 φ320 Spindle speed r/min 50～360 50～320 Main motor power kW 22 37

X-axis Max.

travel mm 450 400

Z-axis Max.

travel mm 900 800

X/Z servo motor N.

m 20/27 20/27 Rapid movement speed (X/Z) m/min 6/8 8/10

Tool rest station number NO.

4+2 8+2

Spindle center height mm 1150 1150

Roughness mm Ra1.6 Ra1.6

Machine weight ㎏ 9600 12800

Machine dimension(L×W×H) mm 4500*2200*2000 5200*2400*2400
