Cnc Lathe For Drill Collar Cylindrical - China

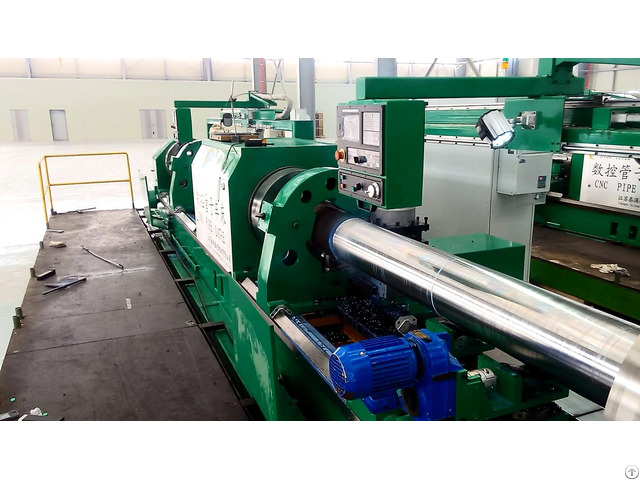

HYSK-1332Z CNC lathe is the special machine for turning cylindrical for drill collar, oil drilling rigs and mandrel etc.

Use three guide rail, main headstock, auxiliary headstock, support guide rollers are on the same pair guide rails, dual big carriages are on the other pair guide rails.

Four 4-jaw chuck clamp workpiece, Z direction use gear and rack transmission, driven by servo motor, X direction use ball screw, driven by servo motor.

Dual way cutting, compared with traditional universal lathe, the machining quality and efficiency are promoted.

Items Unit HYSK-1332Z

Max.

swing diameter over bed mm 900

Max.

work piece length m 12

Spindle bore diameter mm 320

Max.

machining diameter mm φ310

4-jaw chuck diameter mm φ630

3-jaw chuck diameter mm φ630

Guide way width mm 1200

Spindle center height mm 1100

Cutter bar section size mm 40×40

Cutter station number 4+4

Spindle speed range(stepless) r/min 5～320

Two chucks clamping distance mm 2300

Z-axis Max.

travel(dual carriages) mm 3200

X-axis Max.

travel(dual X) mm 400

Rapid movement speed (Z) m/min 8

Rapid movement speed ( X) m/min 6

Control system set 2

Auxiliary headstock moving mode Manual

Motor power kW 37

Machine weight kg 22000

Machine dimension(L×W×H) mm 10000*2300*1800
