Ck6432 Cnc Turret Lathe - China

CK6432 CNC Turret Lathe is a kind of widely used horizontal CNC lathe equipped with powerful CNC system, a four-station electric turret, automatic lubrication system and the cooling system.

HAISHU brand CNC Turning Machine CK6432 is preferable for for metal cutting, turning or drilling functions.

This kind of CNC lathe provides stability, rigidity and accuracy for a variety of applications.

All our CNC lathes can be custom design and fabricate by your requirement.

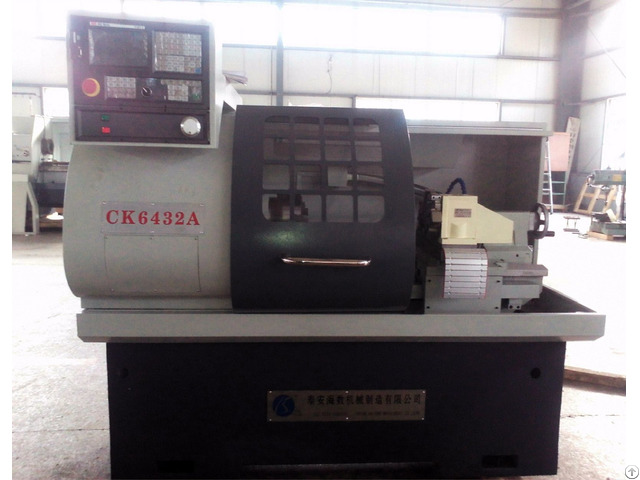

CK6432 CNC Turret Lathe

1 - System: GSK928TD-L, servo motor and drive 2 - Manual 3-jaw chuck, 4-station electric tool post.

3 - Manual tailstock, Semi-Rugged 4 - Cooling system, ; metal plate cover and double protective door 5 - Lighten system standard T8 fluorescent lamp ; 6 - Automatic lubrication system;

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Automatic Grade:

Automatic

Max.

Swing Diameter:

360mm

Place of Origin:

Shandong, China (Mainland)

Brand Name:

HAISHU

Model Number:

ck6432

Voltage:

380v 50hz 3phases

Power(W):

4KW

Dimension(L*W*H):

1620*1060*1600

Weight:

1450

Certification:

ISO9001: 2008, CE

After-sales Service Provided:

Engineers available to service machinery overseas

Max.

swiming over pallet(mm):

150

Max.

the workpiece length(mm):

750

Range of spindle speed(r/min):

100-2500

Spindle bore(mm):

60

Chuck size(mm):

200

Turret maximum stroke(mm):

X - axis: 260 Z - axis: 750

Fast-moving feed(mm/min):

X - axis: 6000 Z - axis: 8000

Repeat positioning accuracy(mm):

X - axis: 0.01 Z - axis: 0.015

Dia.

of tailstock quill(mm):

60

Name:

Cnc Lathe Machine Specification CK643
