Casing Pipe Threading Lathe - China

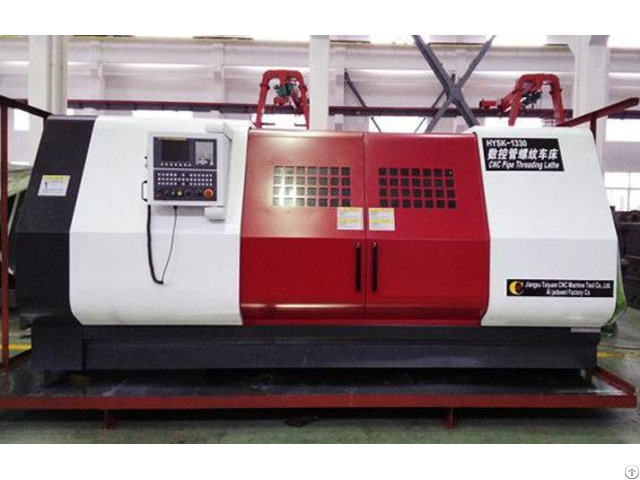

HYSK-1330 CNC pipe threading lathe is two coordinates continuous control CNC pipe threading lathe, flat bed machine, especially suitable for turning casing pipe thread.

The CNC system is FUNAC0i Mate-TD Main technical parameter:

No.

Item Unit HYSK-1330

1 Max swing diameter over bed mm ∮680

2 Pneumatic chuck diameter mm ∮630

3 Pneumatic single jaw travel mm 20+7

4 Working range of diameter mm 125～280

5 Working range of length mm 1500

6 Max swing diameter over carriage mm ∮380

7 Spindle hole diameter mm ∮300

8 Spindle rotate speed rpm 25～400

9 Main motor power kW 15

10 Max.

stroke of X axis mm 400

11 Max.

stroke of Z axis mm 1000

12 X/z servo motor N.

m 22/22

13 Turret type 4 position

14 Weight kg 9600

15 Dimension(LXWXH) mm 3200×1900×1800

Company Contact:

• Posted By: Taixing Hongyuan CNC Machine Tool Co.,Ltd

• Phone: +86-13951157652

• Address: Daiwang Road, East Industrial Park, Taixing , Jiangsu , China

• Email:

• Business Description: Taixing Hongyuan Machinery Co., Ltd, located in Taixing, Jiangsu, is the top ranked and experienced machinery manufacturer and supplier in China, whose series of high quality CNC machinery, machine tools, mechanical & electric equipments are widely used in the field of metalworking, shipbuilding, oil industry etc.

  Established in 2003, and spread its business to over 30 countries

  Our main product :

  1 - CNC pipe threading lathe, drill pipe hardbanding machine, drill pipe repair machine, CNC spiral groove milling machine etc, this series machineries are mainly used in petroleum, gas industry for manufacturing and processing hardbanding, thread products, on oil tubing, casing, drill pipe, drill collar, tool joint, and coupling etc.

  2 - CNC gas/plasma cutting machine， Wire rope swaging machine

  3 - High velocity relief valve (pressure/vacuum valve) for oil tanker and chemical tanker



  With over 10 years of combined knowledge and expertise, our team is staffed with skilled people that our customers can count on, provide innovative and cost effective solutions to customer needs.
