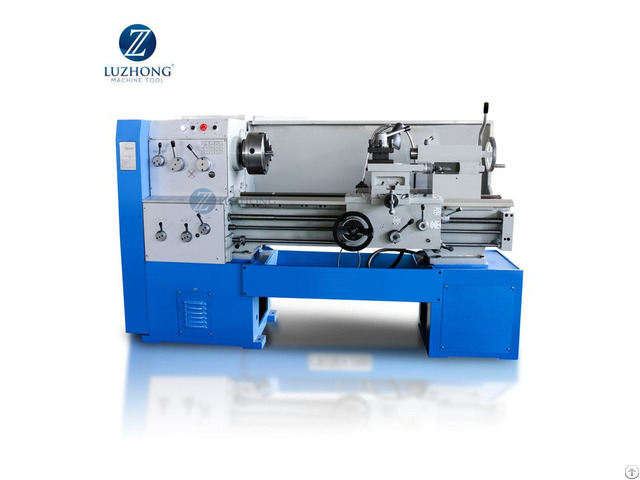

C6150 Shandong Luzhong Turning Metal Floor Type Gap Bed Lathe Machine - China
price: 4700.00 Dollar US$
Feature
Guide way width 400mm
SPECIFICATIONS
SPECIFICATIONS Units CK6150D
Swing over bed mm 500
Swing over cross slide mm 280
Distance between centers mm 750/1000/1500/2000
Spindle bore mm 52
Spindle bore taper - MT6
Spindle nose type - C6
Spindle speed steps - Manual 2 steps
Spindle speed range rpm L: 70-700 H: 160-1600
Turret/tool post - Electric 4 position
Tool size mm 25 x 25
X axis travel mm 300
Z axis travel mm 750/1000/1500/2000
X axis rapid traverse mm/min 6000
Z axis rapid traverse mm/min 8000
Tailstock quill diameter mm 75
Tailstock quill taper - MT5
Tailstock quill travel mm 140
Main spindle motor kw 7.5
Coolant pump motor kw 0.125
Weight for 750 kg 1900
Weight for 1000 kg 2000
Weight for 1500 kg 2200
Weight for 2000 kg 2400
Dimension for 750 mm 2200x1650x1750
Dimension for 1000 mm 2500x1650x1750
Dimension for 1500 mm 3000x1650x1750
Dimension for 2000 mm 3500x1650x1750
