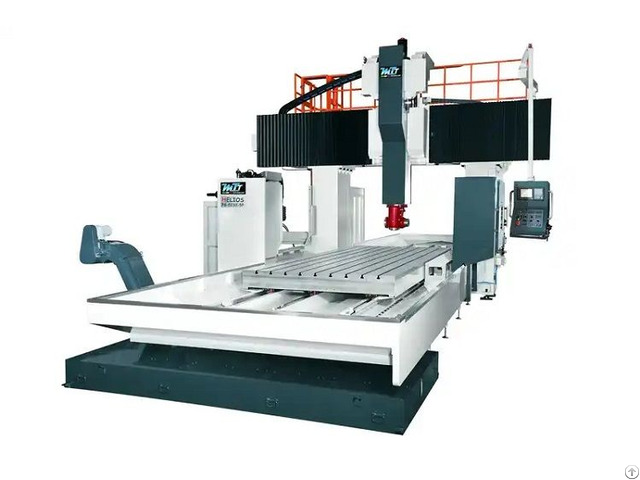

Bridge Type Machining Center 5 Face - Taiwan

Model: FB 5 Face Bridge

automotive industry, railway industry, shipbuilding industry

Construction Machinery, petrochemical industry, aerospace industry

Military Enterprise Description:

High rigidity cross-roller linear guides: X, Y, Z Axes adopts rigid, high-precision and smooth running guide ways.

Mutiple blocks and guide ways along the same axis

enhance the static and dynamic loading capacity, thus guarantee accuracy and long service life.

High rigidity crossbeam structure design: The muti-layered steel column structure is specially reinforced and widened at the base to achieve the stability, rigidity and

vibration damping characteristic required during high pricision and high chip removal rate operations.

Optimum structure FEA: Finite Element Analysis is applied to simulate the machine structure under realistic loading conditions.

All structural components s are optimized to meet the required rigidity and stability

Company Contact:

• Posted By: Chi Fa Machinery Manufacturer Co., Ltd.

• Phone: 886-4-25628747

• Address: No.44-8, Ming-Chuan Rd., Sheng-Kang Dist.,, Taichung City, Taiwan

• Email:

• Website: https://www.twinhorn.com/

• Business Description: Chi-Fa Machinery was established in 1976, originated as a knee-type milling machine parts processing factory.

  From 1976 to 1992, the company gradually transformed from a processing facility into an OEM assembly provider, achieving a remarkable record of assembling 1,800 units per month—a feat still unsurpassed in Taiwan.

  Since 1992, Chi Fa has embarked on producing vertical machining centers under its own brand, steadily developing and expanding its product line to include high-end horizontal machining centers and five-axis machining centers through international collaborations with Japanese engine maker Yasunaga and Italian 5-ax machine maker PFG.

  Between 2011 and 2013, Chi-Fa proudly held the top sales position in the drilling and milling machine industry, with a monthly output of approximately 250 units, supplying prominent companies like Green Point and HiP, as well as various upstream and downstream manufacturers of mobile phone casings and other accessories.

  Our Products:

  - Vf Series Vertical High Efficiency Machining Center

  - Vtw Series High Speed Vertical Machining Center With 2 Apc

  - Va Series High Speed Vertical Machining Center

  - Horizontal Machining Center With 2apc

  - Fg Series Double Column Machining Center
