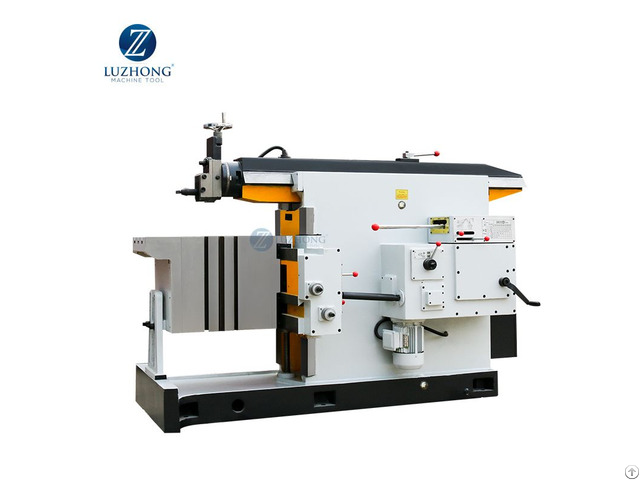

Bc6085 Planner Horizontal Mechanical Metal Shaping Shaper Machine - China

Product main features:

1 - Bed and other key parts tempering, vibration aging, super audio quenching heat treatment process, makes the machine more stable accuracy, longer service life.

2 - The main cutting motion and feed motion are gear transmission, step less speed regulation, with hydraulic overload protection device, smooth rotation, little overrun, start and stop is flexible and reliable, rigidity, cutting force, high directional precision, low oil temperature, small thermal deformation, accuracy and stability, and can apply to the work of a strong and continuous cutting.

3 the machine tool table can achieve fast and vertical movement, the tool carrier has the automatic lifting mechanism, the machine tool handle is centralized, the operation is convenient, the automation degree is high.

The B665 tool used in a variety of cutting and forming flat surface, suitable for single and small batch production.

Product main technical specifications:

Specifications Units B665/B6065

Maximum shaping length mm 650

Maximum moving distance of the working table(level) mm 650

Maximum moving distance of the working table (vertical) mm 300

Maximum distance from ram bottom to table surface mm 6.5-370

Table size (L*W) mm 650×450

Maximum tool carrier travel mm 175

Maximum tool carrier rotary angle 60°

Number of ram reciprocating per minute 12.5-72.7

Type of ram reciprocating 6

Feed quantity of table ram reciprocating travel (level) mm 0.33-3.33

Table feed range of table travel (horizontal) 10

Maximum size of tool planer(W*T) mm 20×30

T-slots width mm 18+0.12

Main motor power KW 2.8

Overall dimension(L*W*H) mm 2280×1450×1750

N.

W kg 1850
