Automatic Vertical Cnc Machining Center Vmc850 With Low Cost - China
price: contact company for price

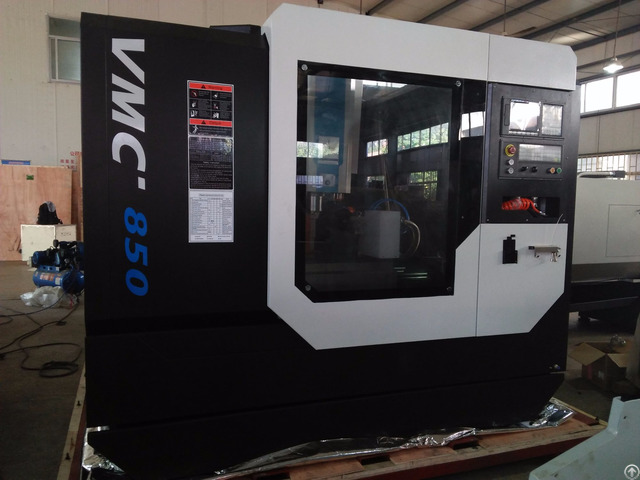

Automatic Vertical Cnc Machining center VMC850 with low cost
Automatic Vertical Cnc Machining center VMC850 designed and manufactured by HAISHU Machinery is the 3 axis CNC machining center.
Our CNC vertical machining center VMC850 is equipped with famous brand rectangular guide ways and high accuracy ball screw, the design spindle speed range is 40~6000rpm, the rapid feed speed is up to 24m/min.
The totally enclosed protection device is adopted which assures the safety of worker and lustration of environment.
Our vertical CNC machining center VMC850 is the ideal equipment for such industries as machinery, electron, instrument, instrument, mould and automobile etc.
Automatic Vertical Cnc Machining center VMC850 is mainly used for processingboard, plate, shell parts, mold and other high precision, multi process, the shape of complex parts, can be installed in a mill, continuous complete with drilling, expansion joints, boring, tapping and 2D and 3D surface, precision machining surface, machining process, to shorten the production cycle, allowing the user to obtain good economic benefits.
Automatic Vertical Cnc Machining center VMC850 Specifications: Item
Unit Table size
mm
1100×500 Number/Width/Distance of T-slot
mm
3-18-150 Maximum load
Kg
500 Table travel(X, Y, Z) mm
800x500x500 Distance from spindle nose to table surface
mm
150-650 Distance from spindle axis to column guideway
mm
560 Rapid traverse speed(X, Y, Z)
m/min
24, 24, 18m/min Cutting feed speed(X, Y, Z)
mm/min
2.5-10000mm/min Taper of spindle BT40 Spindle speed range
r/min
40-6000rpm Spindle motor power
kw
7.5 Tool magazin capability
qty
16 Max.
weight of tool
kg
6kg Max.
dimension of tool
mm
φ130x300 Repeat positioning accuracy
mm
±0.01 L×W×H
mm
2500×2260×2600 Net weight
kg
4750
s OK.
Company Contact:
- Posted By: Taian Haishu Machinery CO.,LTD
- Phone: +8613562857553
- Address: Shankou town, Taian , Shandong , China
- Email:
- Website: https://www.wheelcncmachine.com
Published date: July 7, 2018
- Business Description: Taian Haishu Machinery CO., LTD was found ed in 2001, mainly produce cnc lathe, cn c machine centers, all through CE.
