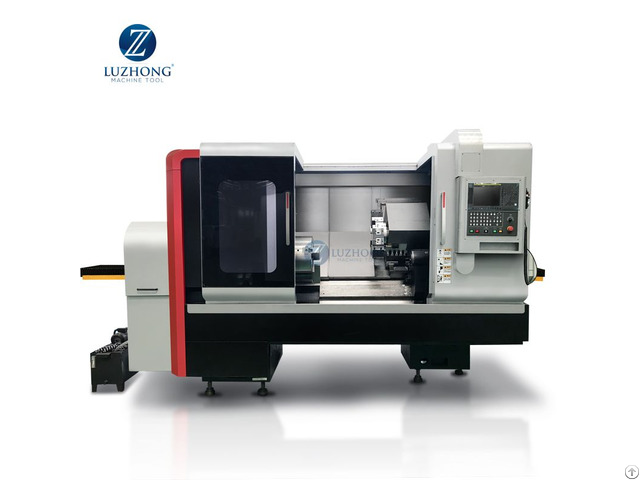

Automatic Precision Tck500 Tck630 Tck800 Cnc High Speed Slant Bed Linear Rail Lathe - China

CNC LATHE INTRODUCTION

This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.

FEATURES

◆One-piece bed adopts high strength iron to ensure rigidity and precision

◆Slant bed design and linear guideways enqure process speed and accuracy ◆Carriage and guide-way contact surface use Turcite B to maintain accuracy.

SPECIFICATIONS Units TCK500

Swing over bed mm 500

Swing over cross slide mm 380

Distance between centers mm 500/1000/1500/2000/3000

Guideway width ° 45

Spindle bore mm 82

Spindle speed steps - Stepless

Spindle speed range rpm 35-3000

Chuck in 10’’ Hydraulic chuck

Turret/tool post - Hydraulic turret 8position

Tool shank size mm 25 x 25

Boring tool holder size mm φ40

X axis travel mm 300

Z axis travel mm 500/1000/1500/2000/3000

X axis rapid traverse mm/min 10000 Linear guideway

Z axis rapid traverse mm/min 15000 Linear guideway

Tailstock quill diameter mm φ75

Tailstock quill taper - MT5

Tailstock quill travel mm 150

Main spindle motor kw 15

Coolant pump motor kw 0.37

Weight for 500 kg 6000

Weight for 1000 kg 6500

Weight for 1500 kg 7000

Weight for 2000 kg 7500

Weight for 3000 kg 8500

Dimension for 500 mm 4350x1800x1800

Dimension for 1000 mm 4850x1800x1800

Dimension for 1500 mm 5350x1800x1800

Dimension for 2000 mm 5850x1800x1800

Dimension for 3000 mm 6850x1800x1800
