    • Alloy Wheel Machine Ck6166a From Haishu - China

    price: 14800.00 Dollar US$

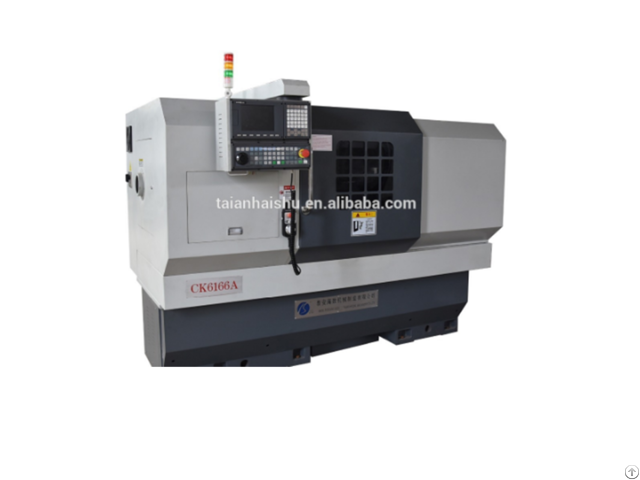

    Alloy Wheel Machine Ck6166a From Haishu

    Products Photos Catalog Alloy Wheel Machine Photos Catalog

    Alloy Wheel Machine CK6166A Alloy Wheel Machine CK6166A is widely used for wheel machining, super-finishing and maintenance.

    These alloy CNC wheel machine has the characteristics of high quality, high precision and high efficiency.

    CNC wheel lathe machine is composed of self-made mechanical parts such as the cast bed, spindle, fixing chuck and the feeding mechanism, the imported numerical control system, the automatic measuring system, the famous brand servo motors and the auxiliary parts like lubrication, light and cooling.

    Our alloy wheel CNC machine model CK6166A are cost-effective, space-saving, they have the same technical parameters and configuration except the maximum wheel diameter.

    The CNC wheel machines are widely used in automobile wheel production factories and repair shops.

    Alloy Wheel Machine CK6166A Main feature 1 - Laser scanning, fast measurement

    2 - Wheel data is automatically stored, machining program is arbitrarily called out.

    3 - Software independent development, program automatically optimize

    4 - Wheel processing is automatic precise and fast

    5 - Touch screen operation, support multiple languages

    6 - X / Z axis measurement, wheel surface and circumferential machining.

    7 - Three-color warning lights.

    8 - MPG

    9 - Automatic lubrication system.

    10 - Diamond cutting.

    11 - Wheel polished

    12 - The machine can be customized according to customer requirements.

    Alloy Wheel Machine CK6166A Technical parameters and configuration

    Item Unit parameters and configuration CK6166A Max.

    wheel diameter Inch 22" Chuck diameter mm φ380 Chuck claws mm Lengthened φ660 X-axis maximum stroke mm 330 Machine size(L×W×H) mm 2450*1680*1775 Net weight kg 2000 Main motor power kw 7.5 Rail width mm 400 Max.

    workpiece length mm 750 Wheel measuring direction X, Z Measuring tool mm Laser, touch probe (optional) Measurement method Point measurement and quick scan Program optimization Manual and automatic Number of wheel processing programs 100000 CNC System "HAISHU" special system (touch screen operation, 17 "screen LCD display).

    Universal CNC system (key operation, 10.4 "screen LCD display) (optional) Wheel processing surface, rim Mchining accuracy IT6~IT7 Surface roughness um Ra0.8~1.6 Main drive form Frequency control, servo drive (optional) Spindle speed rpm Factory setting 150~2000, >2000(optional) Fast-moving feed mm/min X : 5000 Z : 8000 Repeat accuracy mm X : 0.01 Z : 0.015 Turret form Fixed turret, Electric turret (optional) Section of turning tool mm 25×25


    Company Contact:


    • Phone: +8613562857553

    • Address: Shankou town, Taian , Shandong , China

    • Email: Email


    Published date: July 4, 2018

    • Business Description: Taian Haishu Machinery CO., LTD was found ed in 2001, mainly produce cnc lathe, cn c machine centers, all through CE.
